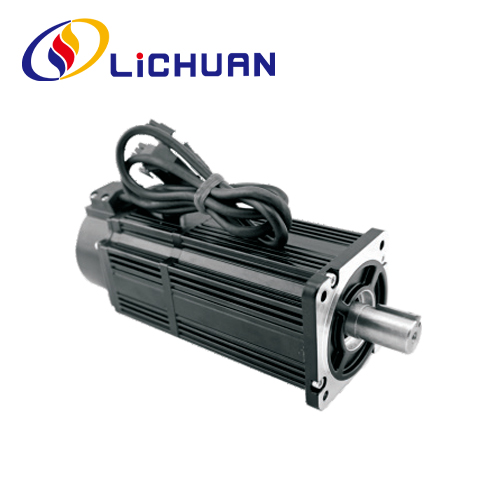

80mm Flange Series AC 220V Servo Motor
  • 80mm Flange Series AC 220V Servo Motor80mm Flange Series AC 220V Servo Motor

80mm Flange Series AC 220V Servo Motor

We will provide you with factory discount prices for our products. LICHUAN® is 80mm Flange Series AC 220V Servo Motor manufacturers and suppliers in China.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 80mm Flange Series AC 220V Servo Motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

80mm Flange Series AC 220V Servo Motor contains 0.4KW 0.75KW 1.0KW power specifications,  servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 2500ppr, 17bit incremental, 17bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Technical Specifications

Motor model LCMT-04L□□-80M01330 LCMT-07L□□-80M02430 LCMT-07M□O-80M03520 LCMT-10L□O-80M04025
Rated power(KW) 0.4 0.75 0.75 1.0
Rated voltage(V) 220 220 220 220
Rated current (A) 2.0 3.0 3.0 4.4
Rated speed(rpm) 3000 3000 2000 2500
Holding torque(N.m) 1.27 2.39 3.5 4.0
Peak torque(N.m) 3.8 7.1 10.5 12
Peak current(N.m) 6.0 9.0 9.0 13.2
Voltage constant(V/1000r/min) 40 48 71 56
Torque coefficient(N.m/A) 0.64 0.8 1.17 0.9
Rotor  inertia(Kg.m²) 1.05x10⁴ 1.82×104 2.63x104 2.97x104
Phase Resistance(Q) 4.44 2.88 3.65 1.83
Phase Inductance(mH) 7.93 6.4 8.8 4.72
Mechanical time-constant (Ms) 1.66 2.22 2.4 2.58
Weight(Kg) 1.78 2.86 3.7 3.8
Encoder line number(PPR) 2500 /Absolute Value Encoder
Insulation class Class B(130℃)
Safety class IP65

Appearance and Installation Dimensions (Unit: mm)


The abstract wiring diagram of Lichuan A4 series servo driver and several commonlyused parameter settings.

AC 220V Servo Motor a Full Kit

Lichuan Factory Production Products Machine

  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications

  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
