130mm Flange Series AC 220V Servo Motor

With years of experience in production 130mm Flange Series AC 220V Servo Motor, LICHUAN® can supply a wide range of product. High quality 130mm Flange Series AC 220V Servo Motor can meet many applications, if you need, please get our online timely service about product.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 130mm Flange Series AC 220V Servo Motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

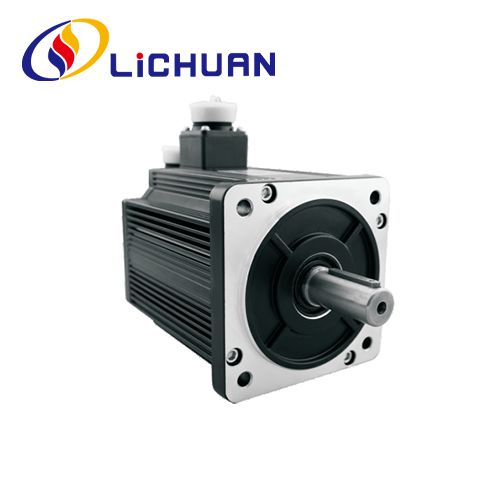

130 series AC servo motor contains 1.0KW 1.3KW 1.5KW 2KW 2.6KW 2.3KW 3.0KW 3.8KW power specifications, servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 2500ppr, 17bit incremental, 17bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Technical Spedifications

Motor model	LCMT-10LO -130M04025	LCMT-13LOO -130M05025		LCMT-15LOO -130M06025		LCMT-20LOO -130M07725			LCMT-10MOO -130M10010		LCMT-15MOO -130M10015		LCMT-26M□□ -130M10025			LCMT-23M□□ -130M15015			LCMT-30M□□ -130M15020		LCMI-38MOO -130M15025
Rated power(KW)	1.0	1.3		1.5		2.0			1.0		1.5		2.6			2.3			3.0		3.8
Rated voltage(V)	220	220		220		220			220		220		220			220			220		220
Rated current (A)	4.0	5.0		6.0		7.5			4.5		6.0		10			9.5			12		13.5
Rated speed(rpm)	2500	2500		2500		2500			1000		1500		2500			1500			2000		2500
Holding torque(N.m)	4.0	5.0		6.0		7.7			10		10		10			15			15		15
Peaktorque(N.m)	12	16		18		22			20		25		25			30			30		30
Voltage constant (V/1000r/min)	72	68		65		68			140		103		70			114			80		67
Torque coefficient (N.m/A)	1.0	1.0		1.0		1.03			2.2		1.67		1.0			1.58			1.25		1.11
Rotor inertia(Kg.m²)	0.85×10*3	1.06×10 ·3		1.26×10*3		1.53×10*3			1.94×10 ·3		1.94×10*3		1.94×10*3			2.77×103			2.77×10~3		2.77×10³
Phase Resistance(Q)	2.76	1.84		1.21		1.01			2.7		1.29		0.73			1.1			0.64		0.49
Phase Inductance(mH)	6.42	4.9		3.87		2.94			8.8		5.07		2.45			4.45			4.45		1.68
Mechanical time-constant (Ms)	2.32	2.66		3.26		3.80			3.26		3.93		3.36			4.05			4.05		3.43
Weight(Kg)	7.7	8.2		8.9		10			11.5		11.5		11.5			14.4			14.4		14.4
Encoder line number (PPR)	2500 /Absolute Value Encoder
Insulation class	Class B(130°℃)
Safety class	IP66
Use environment	Temperature:-20°℃~+50°℃ Humidity: Below 90% RH No dewing
Motor winding plug	Winding lead wire		u					v					w						PE
	Plug serial number		2					3					4						1
Encoder plug	Signal lead wire		5V		ov	A+	B+		Z+	-	-	-		U+	V+		W+	-		-	-	PE
	Plug serial number		2		3	4	5		6	7	8	9		10	11		12	13		14	15	1

Installation Notes

1.When installation/disassembly parts are at motor shaft end, do not hit the shaft with force, otherwise encoder on the other side of shaft may be damaged.
2.Try to avoid vibration of shaft base, otherwise shaft may be damaged.

130 Series
Rated torque(N .m)	4.0	5.0	6.0	7.7	10			15
Rated torque(N .m)	4.0	5.0	6.0	7.7	1000rpm	1500rpm	2500rpm	1500rpm	2000rpm	2500rpm
LA(Length)	166	171	179	192	213		209	241	231
LB(Shaft Length)	57	57	57	57	57		57	57	57
LC(Rabbet Depth)	5.0	5.0	5.0	5.0	5.0		5.0	5.0	5.0
LD(Flange Depth)	14	14	14	14	14		14	14	14
LE(Rabbet Diameter)	110	110	110	110	110		110	110	110
LF(Flange Size)	130	130	130	130	130		130	130	130
LG(Diagonal Pitch)	145	145	145	145	145		145	145	145
LZ(Installation Holes)	9.0	9.0	9.0	9.0	9.0		9.0	9.0	9.0
S(Shaft Diameter)	22	22	22	22	22		22	22	22
W(Key Slot Width)	6.0	6.0	6.0	6.0	6.0		6.0	6.0	6.0
H(Key to wheelbase)	24.5	24.5	24.5	24.5	24.5		24.5	24.5	24.5
Length of body with brake	223	228	236	249	294		290	322	312
