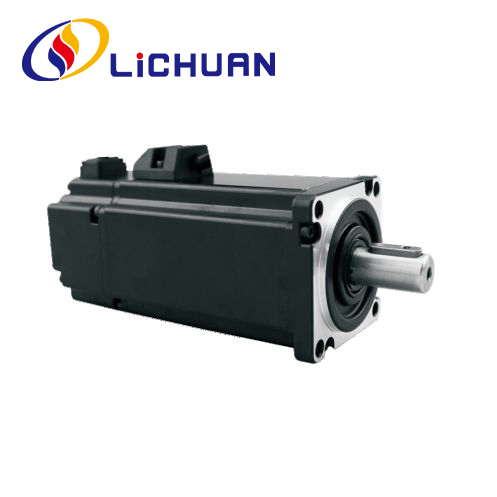

60mm Flange Series 220V Servo Motor

You can rest assured to buy 60mm Flange Series 220V Servo Motor from LICHUAN® factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 60mm Flange Series 220V Servo Motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

60mm Flange Series 220V Servo Motor contains 0.2KW 0.4KW 0.6KW power specifications, servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 2500ppr, 17bit incremental, 17bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Technical Specifications

Motor model	LCMT-02L□0-60M00630	LCMT-04L00-60M01330	LCMT-06L□□-60M01930
Rated power(KW)	0.2	0.4	0.6
Rated voltage(V)	220	220	220
Rated current (A)	1.5	2.8	3.5
Rated speed(rpm)	3000	3000	3000
Holding torque (N.m)	0.637	1.27	1.91
Peak torque (N.m)	1.911	3.8	5.73
Voltage constant(V/1000r/min)	28	28	28
Torque coefficient(N.m/A)	0.42	0.5	0.55
Rotor inertia(Kg.m²)	0.17x104	0.302×104	0.438×104
Phase Resistance(Q)	11.6	5.83	3.49
Phase Inductance(mH)	22	12.23	8.47
Mechanical time-constant (Ms)	1.9	2.1	2.4
Weight(Kg)	1.11	1.33	1.78
Encoder line number(PPR)	2500 /Absolute Value Encoder
Insulation class	Class B(130℃)
Safety class	IP64
