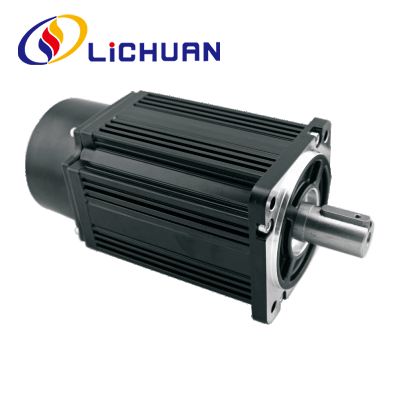

90mm Flange Series AC 220V Servo Motor

LICHUAN® is one of the professional 90mm Flange Series AC 220V Servo Motor manufacturers and suppliers in China. Our products are CE certified and have in stock of factory, welcome to wholesale 90mm Flange Series AC 220V Servo Motor from us.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 90mm Flange Series AC 220V Servo Motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

90 series AC servo motor contains 0.75KW 1.0KW power specifications, servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 2500ppr, 17bit incremental, 17bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Technical Specifications

Motor model	LCMT-07L□□-90M02430	LCMT-07M□□-90M03520	LCMT-10L□□-90M04025
Rated power(KW)	0.75	0.75	1.0
Rated voltage(V)	220	220	220
Rated current (A)	3.0	3.0	4.0
Rated speed(rpm)	3000	2000	2500
Holding torque(N.m)	2.4	3.5	4.0
Peak torque(N.m)	7.1	10.5	12
Peak current(N.m)	9.0	7.5	12
Voltage constant(V/1000r/min)	51	67	60
Torque coefficient(N.m/A)	0.8	1.2	1.0
Rotor inertia(Kg.m²)	2.45×104	3.4×104	3.7×104
Phase Resistance(Q)	3.2	4.06	2.69
Phase Inductance(mH)	7.0	9.7	6.21
Mechanical time-constant (Ms)	2.2	2.39	2.3
Weight(Kg)	3.4	3.8	4.13
Encoder line number(PPR)	2500 / Absolute Value Encoder
Insulation class	Class B(130°℃)
Safety class	IP66
