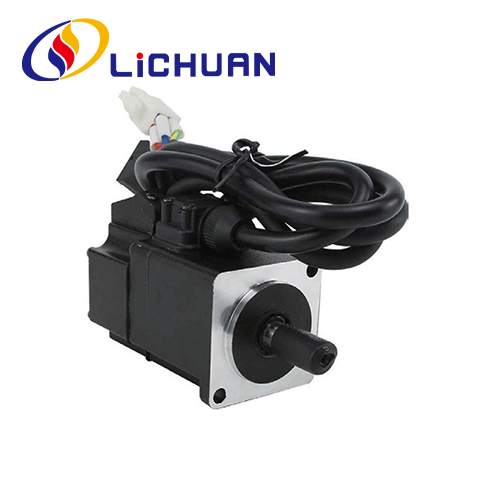

40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor
  • 40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor

40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor

LICHUAN® as a professional high quality 40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor manufacturer, you can rest assured to buy 40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 40mm Flange Series AC 220V 5 Pairs of Poles Servo Motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

40 series 5 pairs of poles servo motor AC servo motor contains 0.05KW 0.1KW power specifications,  servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 17bit incremental, 17bit absolute encoder ,23 bit incremental encoder ,23 bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Technical Specifications

Motor model LOMT-05SLC170C-40M00130 LDMT-01SLC170□-40M00330
Rated  power(KW) 0.05 0.1
Rated voltage(V) 220 220
Rated current (A) 0.8 1.1
Rated speed(rpm) 3000 3000
Holding torque (N.m) 0.16 0.32
Peak  torque(N.m) 0.48 0.95
Voltage constant(V/1000r/min) 19 20
Torque coefficient (N.m/A) 0.2 0.29
Rotor inertia (Kg.m2) 0.035x10⁻⁴ 0.06x10~4
Phase Resistance(Q) 19.7 10.5
Phase  Inductance(mH) 41 8.9
Mechanical time-constant (Ms) 2.0 0.85
Weight(Kg) 0.6 0.8
Encoder line number(PPR) 2500 /17 Bit incremental/17 Bit absolute encoder
Insulation class Class F
Safety class IP65

Appearance and Installation Dimensions (Unit: mm)



WIRING DIAGRAM OF SERVO PERIPHERAL EQUIPMENT

The abstract wiring diagram of Lichuan LC10P series servo driver and several commonlyused parameter settings.



AC 220V Servo Motor a Full Kit



Lichuan Factory Production Products Machine


  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications


  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
