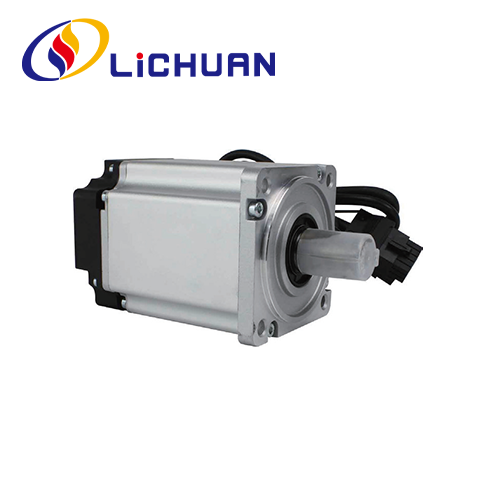

80mm Flange Series AC 220V 5 Pairs of Poles 750W 1KW Servo Motor

As a professional 80mm Flange Series AC 220V 5 Pairs of Poles 750W 1KW Servo Motor manufacture, you can rest assured to buy 80mm Flange Series AC 220V 5 Pairs of Poles Servo Motor from our factory and LICHUAN® will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 80mm Flange Series AC 220V 5 Pairs of Poles 750W 1KW Servo Motor from our Lichuan factory , which can fit in cnc machine ,all automatic machine , Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

80mm Flange Series AC 220V 5 Pairs of Poles Servo Motor contains 0.2KW 0.4KW 0.6KW power specifications, servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 17bit incremental, 17bit absolute encoder ,23 bit incremental encoder ,23 bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Technical Specifications

Motor model	LOMT-07SLC170□-80M02430	LDMT-10SLC170□-80M03230
Rated power(KW)	0.75	1.0
Rated voltage(V)	220	220
Rated current (A)	4.5	5.8
Rated speed(rpm)	3000	3000
Holding torque(N.m)	2.39	3.2
Peak torque(N.m)	7.17	7.96
Peak current(N.m)	13.5	15.6
Voltage constant(V/1000r/min)	32.8	32.5
Torque coefficient(N.m/A)	0.53	0.55
Rotor inertia(Kg.m²)	1.5×10⁴	1.55x104
Phase Resistance(Q)	1.2	1.17
Phase Inductance(mH)	4.2	3.9
Mechanical time-constant (Ms)	3.5	3.33
Weight(Kg)	2.05	2.15
Encoder line number(PPR)	2500/17 Bit incremental /17 Bit absolute encoder
Insulation class	Class F
Safety class	IP65

Appearance and Installation Dimensions (Unit: mm)

WIRING DIAGRAM OF SERVO PERIPHERAL EQUIPMENT

The abstract wiring diagram of Lichuan LC10P series servo driver and several commonlyused parameter settings.

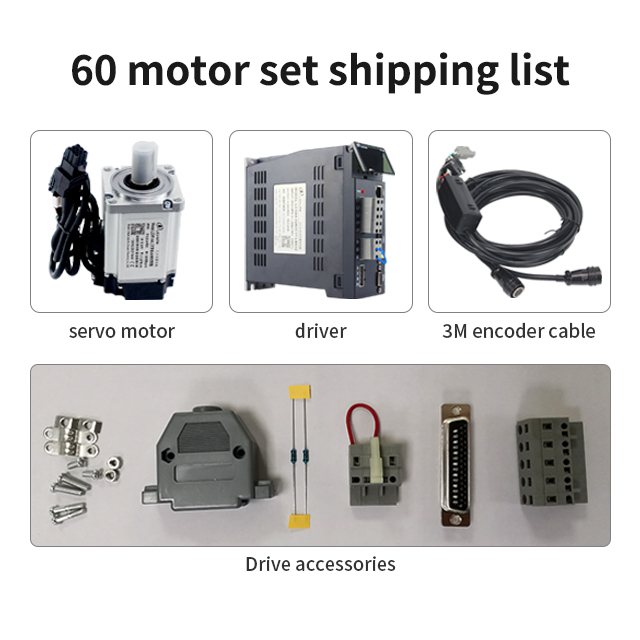

AC 220V Servo Motor a Full Kit

Lichuan Factory Production Products Machine

Carving Machine
Coating Equipment
Fiber laster Marking Machine
Screwing Machine
Testing Machine
UV Printer

Automatic Soldering Machine
Holding Torque Testing Machine
Screw Machine
Oscillograph Machine

Industry Applications

Robotic Arm
Laser Cutting Machine
3D Printing
CNC Machine
Automatic Assertmbly
Engraving Machine
