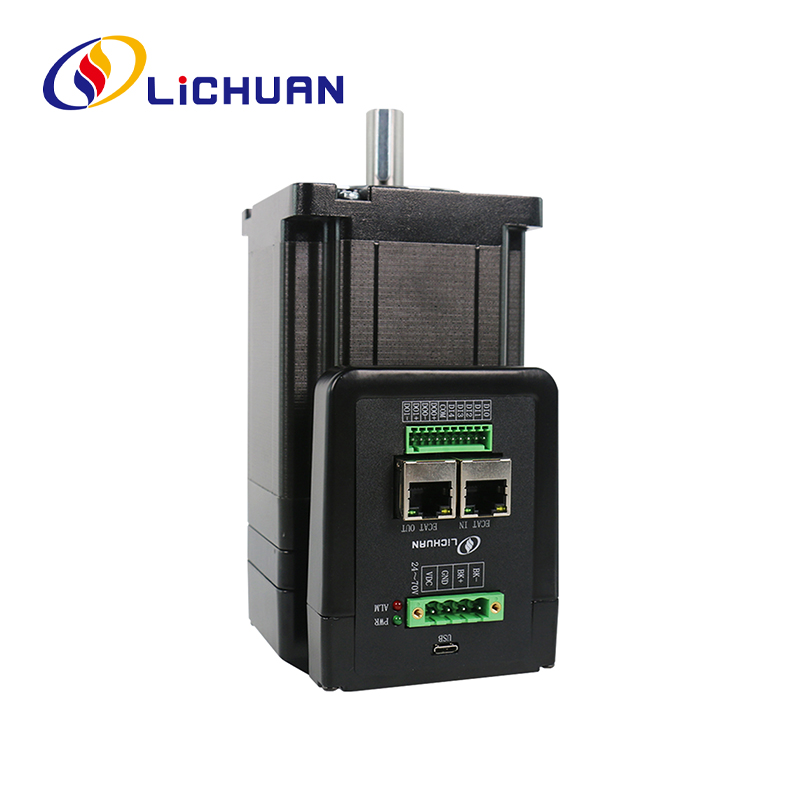

L Type Nema34 Integrated Stepper Motor

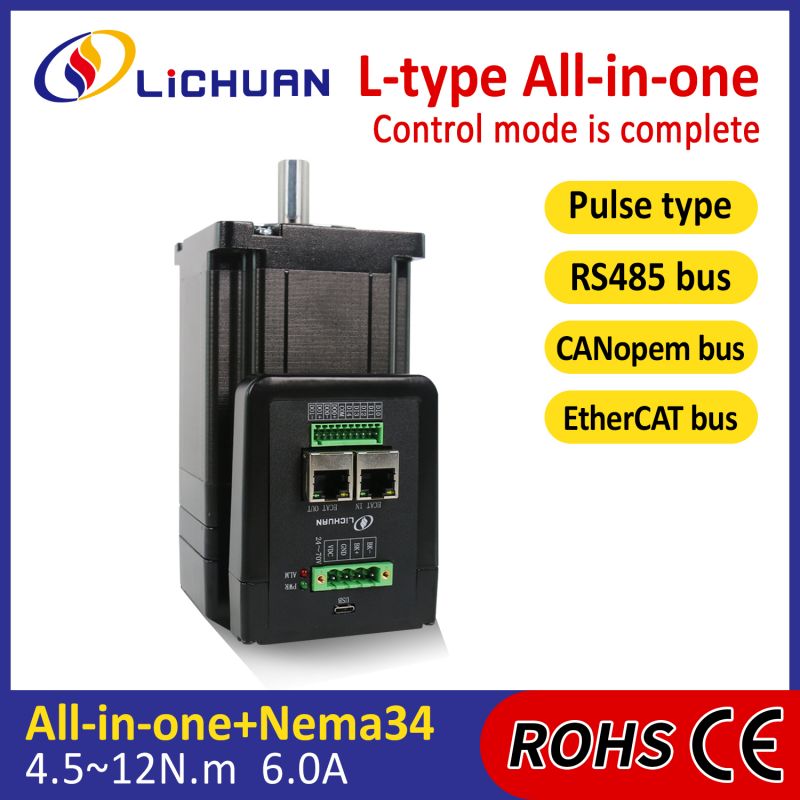

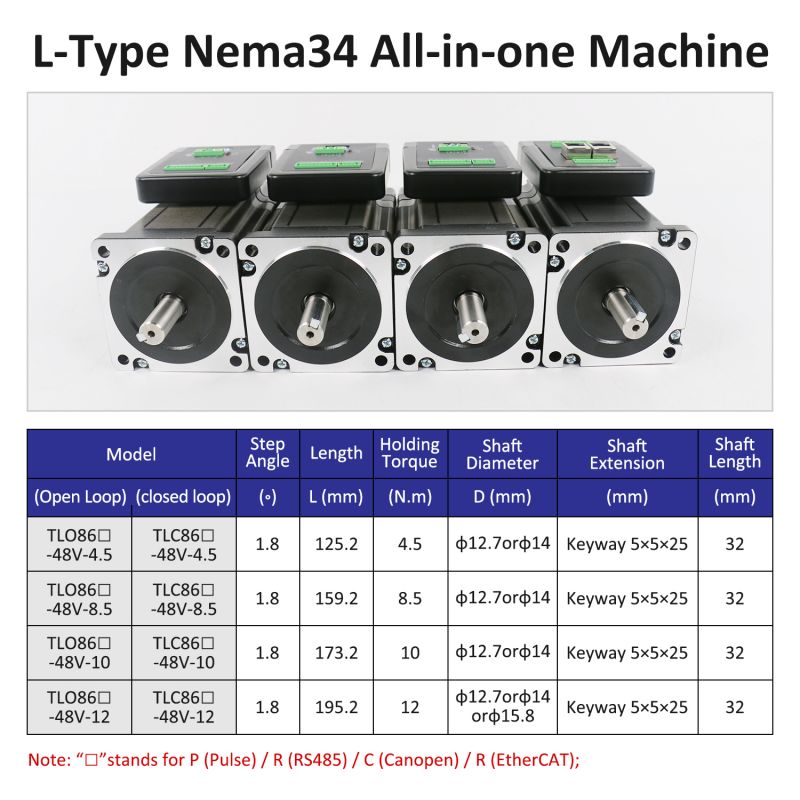

L Type Nema34 Integrated Stepper Motor has open loop/Closed loop. Which has pulse control, ethercat bus, RS485 bus. Intelligent All-in-One Servo System Closed-loop stepper motor with integrated controller and encoder. Space-saving all-in-one servo system simplifies installation. Flange size: 86 mm. Holding torque 4.5nm 8.5nm 10nm 12nm We are original factory ,we have CE, ROHS certificate.

Send Inquiry

Product Description

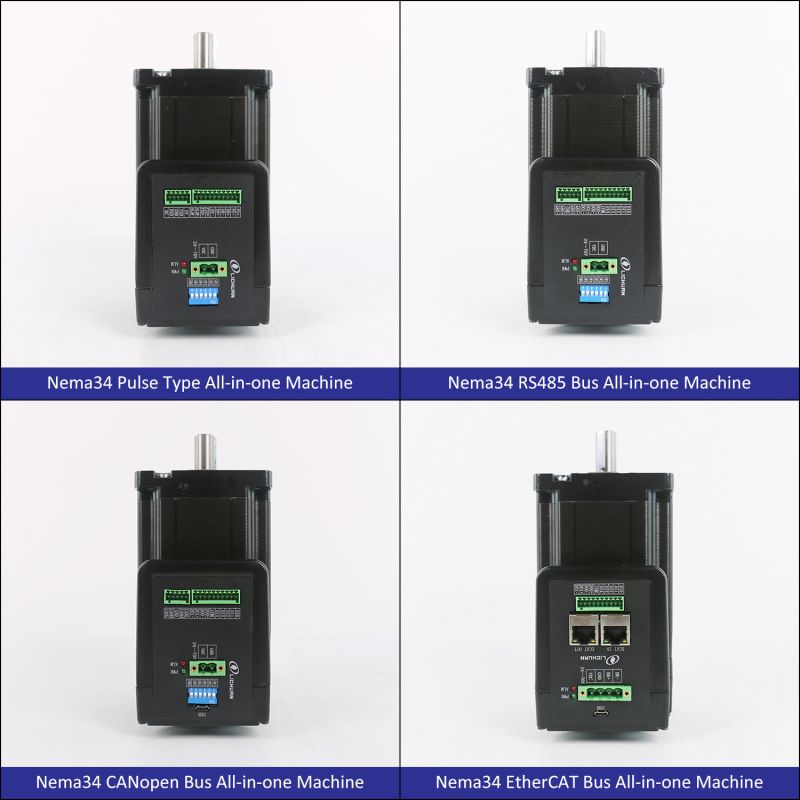

This L Type Nema34 Integrated Stepper Motor adopts the new generation of 32-bit DSP technology, combines RS485, Canopen, Ethercat, Pulse bus control functions, supports MODBUS-RTU communication protocol, can mount up to 32 axes, can realize multi-axis bus synchronous control, the driver has 15 internal positions and 15 internal speeds, supports automatic return to zero, absolute/relative positioning, JOG and other functions, and can be directly controlled by touch screen or controller with RS485 interface. Pulse control combines the split driver control function, supports current self-tuning, pulse + direction control, double pulse control and other functions, while improving the stability of the motor without losing steps and low temperature rise, it also improves the high-speed performance of the motor, reduces motor vibration, improves the processing speed and accuracy of the machine, and reduces the power consumption of the machine. Control mode supported by Ethercat
Profile Position Mode(PP)
Profile Velocity Mode(PV)
Homing Mode(HM)
Cycle Synchronized Position Mode(CSP)
