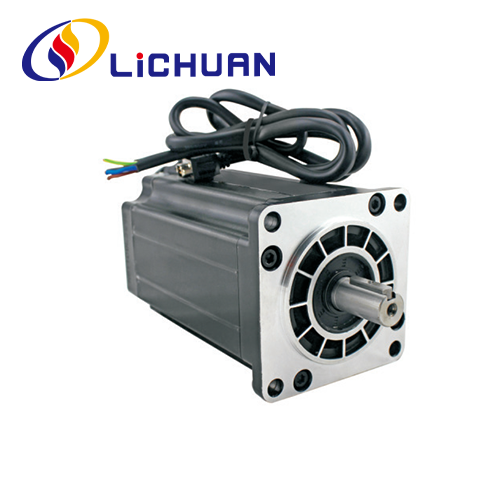

110 Series 3 Phase Nema42 Closed Loop Stepper Motor
LICHUAN® is a professional leader China 110 Series 3 Phase Nema42 Closed Loop Stepper Motor manufacturer with high quality and reasonable price. Welcome to contact us.
Send Inquiry
Product Description
High quality 110 Series 3 Phase Nema42 Closed Loop Stepper Motor is offered by China manufacturer LICHUAN®. Buy 110 Series 3 Phase Nema42 Closed Loop Stepper Motor which is of high quality directly with low price.
110 series 3 phase Nema42 closed loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 161mm ~ 219mm, the torque range: 12N.m ~ 20N.m, motor shaft diameter 19mm. 110 series 3 phase Nema42 closed loop stepper motor can be match for 3 type driver:RS485. Canopen.Pulse control drivers.
Electrical Performance Parameters
| Item | Specifications |
| Step Angle Accuracy | ±5%(Full Step) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80°℃ max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~* 50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450gload) |
| Allowable Thrust Load | 0.08mm Max. (450gload) |
| Radial Max Load | 220N(20mm from flange surface) |
| Shaft Max Load | 60N |
| Serles |
Step Angle(") |
Length (mm) | Holding Torque(N.m) |
Phase Current (A) |
Rotational Inertia(g.cm²) |
Phase Resistance (Q) |
Phase Inductance(mH) |
Matchend driver |
Lead wire(No.) |
Weight (kg) |
| LC110H3151 | 1.2 | 161 | 12 | 6.0 | 9720 | 1.89 | 8.34 | LCDA2260E | 3 | 6.6 |
| LC110H3185 | 1.2 | 185 | 16 | 6.4 | 13560 | 1.89 | 8.73 | LCDA2260E | 3 | 9.0 |
| LC110H3219 | 1.2 | 219 | 20 | 6.9 | 17400 | 1.859 | 7.26 | LCDA2260E | 3 | 11.1 |
Above are representative products. Products can be customized!
Shape and installation size (unit:mm)
Shaft Mode of Motor
| Model |
Shaft Diameter(mm) |
Shaft Extension(mm) |
Shaftt Length(mm) |
| LC110H3151 | φ19 | Keyway 6x 30 | 40 |
| LC110H3185 | φ19 | Keyway 6x 30 | 40 |
| LC110H3219 | φ19 | Keyway 6x 30 | 40 |
Motor Wiring Diagram
Motor Wire Colors
Definitions of Encoder Lead Colors
| 1 | yellow | EB+ |
| 2 | green | EB- |
| 3 | black | EA+ |
| 4 | blue | EA- |
| 5 | Red | +5VCC |
| 6 | White | EGND |
Notes
1.Phases shall be correctly connected while connecting motor and the Driver.
2. Obvious heat generation of motor may occur under
different driving conditions . Surface temperature of
motor is allowed to exceed 85°C during operation.
3. Motor must be positioned by installation rabbet on
front cover of motor, attention shall be paid on error
matching, and the concentricity between motor shaft
and load shall be controlled strictly. loop stepper motor can be match for 3 type driver:RS485. Canopen.Pulse control drivers.
