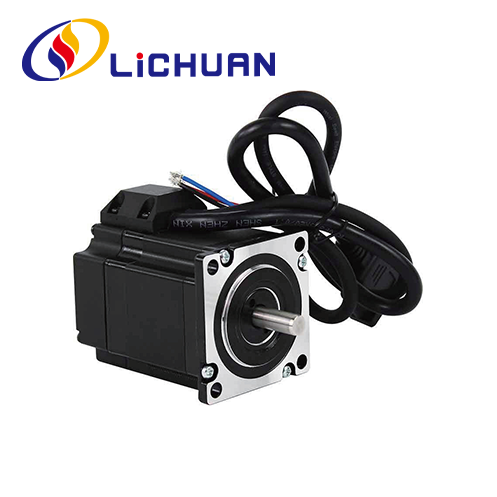

57 Series 3 Phase Nema23 Closed Loop Stepper Motor
Hot Sale China 57 Series 3 Phase Nema23 Closed Loop Stepper Motor Free Sample Manufacturers and Suppliers.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 57 series 3 phase Nema23 closed loop stepper motor Series from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.
57 series 3 phase Nema23 closed loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 77mm ~ 123mm, the torque range: 1N.m ~ 3N.m, motor shaft diameter 8mm. 57 series 3 phase Nema23 closed loop stepper motor can be match for 4 type driver:RS485. Canopen. Ethercat. Pulse control drivers.
Electrical Performance Parameters
| Item | Spedfications |
| Step Angle Accuracy | ±5%(Full Step) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80℃ max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~*50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450gload) |
| Allowable Thrust Load | 0.08mm Max. (450g load) |
| Radial Max Load | 75N(20mm from flange surface) |
| Shaft Max Load | 15N |
| Series |
Step Angle(") |
Length (mm) |
Holding Torque (N.m) |
Phase Current (A) |
Rotational Inertia (g.cm²) |
Weight (kg) |
Encoder Resolution(PPR) |
| LC57H355 | 1.2 | 77 | 1.0 | 3.5 | 300 | 1.0 | 1000 |
| LC57H380 | 1.2 | 102 | 2.0 | 3.5 | 500 | 1.4 | 1000 |
| LC57H3100 | 1.2 | 123 | 3.0 | 4.0 | 700 | 1.8 | 1000 |
Above are representative products. Products can be customized!
Shape and installation size (unit:mm)
Shaft Mode of Motor
| Model |
Shaft Diameter(mm) |
Shaft Extension(mm) |
Shaft Length(mm) |
| LC57H355 | φ8 | D-cut 0.5 x15 | 21 |
| LC57H380 | φ8 | D-cut 0.5x15 | 21 |
| LC57H3100 | φ8 | D-cut 0.5x15 | 21 |
Motor Wiring Diagram
Motor Wire Colors
Definitions of Encoder Lead Colors
| 1 | yellow | EB+ |
| 2 | green | EB- |
| 3 | black | EA+ |
| 4 | blue | EA- |
| 5 | Red | +5VCC |
| 6 | White | EGND |
Notes
1. Phases shall be correctly connected while connecting motor and the Driver.
2. Obvious heat generation of motor may occur under different driving conditions. Surface temperature of motor is allowed to exceed 85 ℃ during operation.
3.Motor must be positioned by installation rabbet on front cover of motor, attention shall be paid on error matching, and the concentricity between motor shaft and load shall be controlled strictly.
Application Wiring Diagram
A complete steppr motor control system should include the prduct shown below
Product Packaging
Lichuan Factory Production Products Machine
-
Carving Machine -
Coating Equipment -
Fiber laster Marking Machine -
Screwing Machine -
Testing Machine -
UV Printer
-
Automatic Soldering Machine -
Holding Torque Testing Machine -
Screw Machine -
Oscillograph Machine
Industry Applications
-
Robotic Arm -
Laser Cutting Machine
-
3D Printing -
CNC Machine -
Automatic Assertmbly -
Engraving Machine
