Precision Dc Servo Motor Solutions
  • Precision Dc Servo Motor SolutionsPrecision Dc Servo Motor Solutions

Precision Dc Servo Motor Solutions

Welcome to wholesale Precision Dc Servo Motor Solutions from us, every request from customers is being replied within 24 hours. LICHUAN® is the professional manufacturer, we would like to provide you Precision Dc Servo Motor Solutions and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale Precision Dc Servo Motor Solutions from our factory. Our products have CE certified and currently have a large amount of factory inventory. We are support OEM&ODM ,We will provide you with good service and factory discounted prices

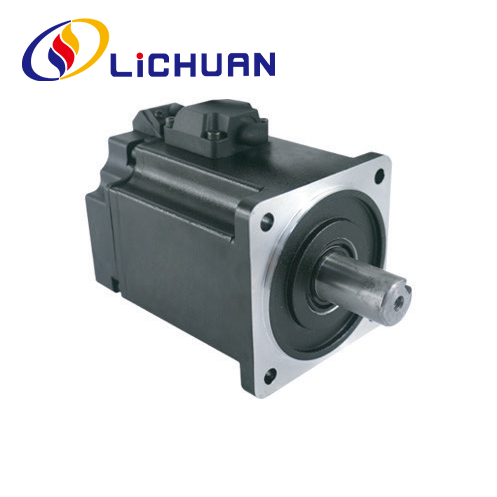

40 series 5 pairs of poles servo motor DC servo motor contains 0.1KW rated power specifications,Based on our years of experience in servo motion control, we have developed low-voltage servo products that include three control methods: pulse type, CANopen bus, and RS485 bus. The drivers equipped with this low-voltage servo can be compatible with the vast majority of CANopen, pulse type, and RS485 BUS master station controllers in the market, and can support up to 31 driver networking, enabling multi axis high-speed bus synchronous control. The driver supports position mode, speed mode, torque mode, and zero return mode, with strong overload capacity, low noise, and fast response characteristics.

Technical Specifications

Motor model LCMT-01SLC02NB-40M00330DC
Rated power(KW) 0.1
Rated voltage(V) 24
Rated current (A) 6
Rated speed(rpm) 3000
Holding torque (N.m) 0.32
Peak torque(N.m) 0.64
Voltage constant(V/1000r/min) 3.2
Torque coefficient(N.m/A) 0.05
Rotor inertia  (Kg.m²) 0.053×104
Phase Resistance(Q) 0.4
Phase Inductance (mH) 0.38
Mechanical time-constant(Ms) 0.95
Weight(Kg) 0.5
Encoder line number(PPR) 2500
Insulation class Class B(130°℃)
Safety class IP65

Appearance and Installation Dimensions (Unit: mm)



DC24V-50V 40 Series 5 Pairs of Poles Servo Motor a Full Kit


  • DC 40series Servo Motor Match for CANopen Driver

  • DC 40series Servo Motor Match for Pulse Control

  • DC 40series Servo Motor Match for RS485 BUS Driver

Lichuan Factory Production Products Machine


  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications


  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
