High Performance Dc Servo Motors
Buy Hot Sale High Performance Dc Servo Motors made in China. LICHUAN® is High Performance Dc Servo Motors manufacturer and supplier in China.
Send Inquiry
Product Description
Wholesale Newest High Performance Dc Servo Motors made in China. LICHUAN® is High Performance Dc Servo Motors manufacturer and supplier in China.

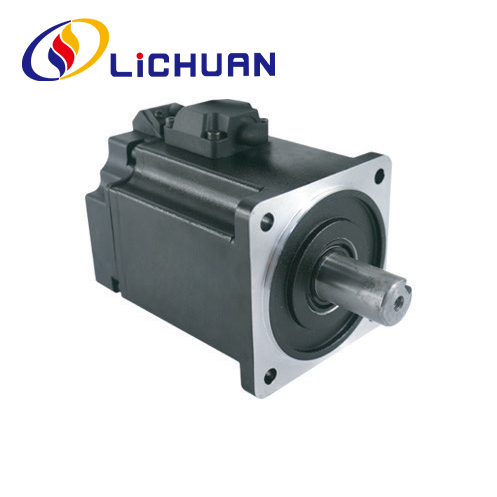

80 series 5 pairs of poles servo motor DC servo motor contains 0.75KW rated power specifications,Based on our years of experience in servo motion control, we have developed low-voltage servo products that include three control methods: pulse type, CANopen bus, and RS485 bus. The drivers equipped with this low-voltage servo can be compatible with the vast majority of CANopen, pulse type, and RS485 BUS master station controllers in the market, and can support up to 31 driver networking, enabling multi axis high-speed bus synchronous control. The driver supports position mode, speed mode, torque mode, and zero return mode, with strong overload capacity, low noise, and fast response characteristics.
Technical Specifications
| Motor model | LCMT-07SLC02NB-80M02430DC |
| Rated power(KW) | 0.75 |
| Rated voltage(V) | 48 |
| Rated current (A) | 19 |
| Rated speed(rpm) | 3000 |
| Holding torque(N.m) | 2.4 |
| Peak torque (N.m) | 4.8 |
| Voltage constant(V/1000r/min) | 8 |
| Torque coefficient(N.m/A) | 0.13 |
| Rotor inertia(Kg.m²) | 1.62×10⁴ |
| Phase Resistance(Q) | 0.08 |
| Phase Inductance(mH) | 0.27 |
| Mechanical time-constant (Ms) | 3.4 |
| Weight(Kg) | 2.5 |
| Encoder line number(PPR) | 2500 |
| Insulation class | dass B(130°℃) |
| Safety class | IP65 |
Appearance and Installation Dimensions (Unit: mm)
DC24V-80V 80 Series 5 Pairs of Poles Servo Motor a Full Kit
-
DC 80series Servo Motor Match for CANopen Driver -
DC 80series Servo Motor Match for Pulse Control
-
DC 80series Servo Motor Match for RS485 BUS Driver
Lichuan Factory Production Products Machine
-
Carving Machine -
Coating Equipment -
Fiber laster Marking Machine -
Screwing Machine -
Testing Machine -
UV Printer
-
Automatic Soldering Machine -
Holding Torque Testing Machine -
Screw Machine -
Oscillograph Machine
Industry Applications
-
Robotic Arm -
Laser Cutting Machine
-
3D Printing -
CNC Machine -
Automatic Assertmbly -
Engraving Machine
