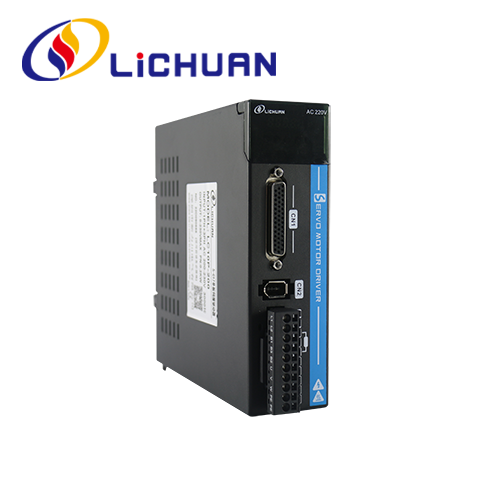

A5 Series AC Servo Motor Driver
  • A5 Series AC Servo Motor DriverA5 Series AC Servo Motor Driver

A5 Series AC Servo Motor Driver

China A5 Series AC Servo Motor Driver Factory Directly Supply. LICHUAN® is A5 Series AC Servo Motor Driver manufacturer and supplier in China.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale A5 Series AC Servo Motor Driver from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

220V AC A5 servo motor driver specifications

Installation environment

◆ Operating temperature/humidity: 0~55℃ (no frost), < 90%RH (no condensation).
◆ Storage temperature/humidity: -20~65℃ (no frost), < 90%RH (no condensation).
◆ Atmospheric environment: inside the control cabinet, without corrosive or flammable gas, oil mist, dust, etc.
◆ Elevation: below 1000m above sea level.
◆ Vibration: < 0.5G (4.9m/s2), 10~60 Hz (non-continuous operation).
◆ Protection: The servo drive itself has no protection, so it must be installed in a well-protected electrical cabinet, and protected from the intrusion of corrosive or flammable gases, conductive objects, metal dust, oil mist and liquids.

1.Support 17bit encoder .23bit encoder AC servo motor .
2. Match for AC servo motor rated power from 50W-3.8KW


Input power Single-phase 220VAC
Temperature 0~45℃
Humidity ≤90%RH,no     condensation
Eleyation Altitude ≤1000m
No corrosive gas, flammable gas, oil mist or dust.
Installation mode Vertical
Encoder Support 17-bit incremental/absolute value encoder, 23-bit incremental/absolute value encoder
Output power 24V voltage output 100mA, supply power to DI port and pulse port.
Control signal Digital input 8-channel common digital input, function can be configured
Digital output 6-channel digital output, function can be configured.
Pulse signal Input 2-channel high-speed input: support up to 1MHz pulse,duty cycle 50%. Support   pulse   input   mode:   PULS+DIR,A+B,CW+CCW
Output 3-channel high-speed pulse output, output signal form: 5V differential signal l channel Z signal single-ended output signal.
Analog signal Input 2-channel analog input, 12-bit resolution, input range -9.5~+9.5V. Among them, AI2 is fixed as the torque limit input
Output None
Communication function RS485   communication,   ModbusRTU   protocol.
Display panel and key operation 5 keys (Mode, Set,Left, Up,Down) and 6 nixie tubes
Braking resistor Built-in 50W 40Q braking resistor. For frequent braking occasions, an external braking resistor is required.


The abstract wiring diagram of Lichuan LC10P series servo driver and several commonly used parameter settings.
