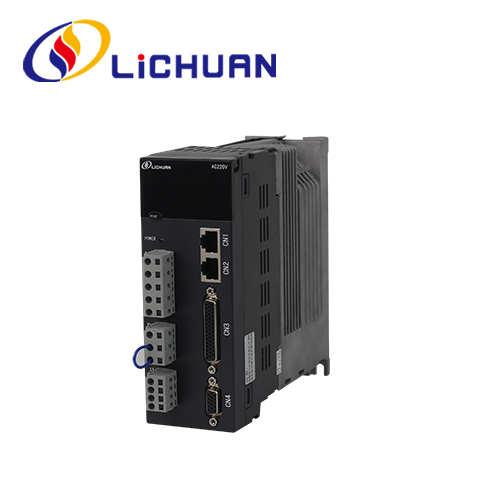

A4 Series AC Servo Motor Driver

Product Description

LICHUAN® warmly welcome you to wholesale A4 Series AC Servo Motor Driver driver from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

220V AC A4 servo motor driver specifications, A4 series servo drive has new functions based on the original functions:
1.Support ±10V analog voltage control
2.Three origin search functions are integrated internally
3.Add 24V pulse input common terminal, and 24V collector output Z signal; 4. Supports three pulse modes: direction + pulse, CW/CCW, AB pulse;
5.Support pulse feedback frequency division function;
6.Support MODBUS bus control.
7.Support 2500ppr encoder AC servo motor .
8. Match for AC servo motor rated power from 50W-2.6KW

Specification

Input power	CONTROL POWER	Single phase 220 VAC
Input power	MAIN POWER SUPPLY	Single Phase/Three Phase 220VAC
Working environment	Temperature	0～45℃
	Humidity	No condensation ≤90% RH or less
	Elevation	Altitude ≤1000M
	Installation environment	Non-corrosive gases, flammable gases, oil mist or dust, etc.
	Installation method	VERTICAL INSTALLATION
Encoder feedback		2500 p/r (resolution: 10000), incremental encoder
Control signal	Digital Input	10 channels of normal digital input, with configurable function.
Control signal	Digital Output	6 channels of normal digital input, with configurable function.
Pulse signals	Input	2 high-speed inputs: differential (600K) and single-ended (200K) pulses. Support pulse input mode: PULS+DIR, A+B,CW+CCW
Pulse signals	Output	3-way high-speed pulse output, output signal form: 5V differential signal 1-way Z signal single-ended output signal.
Analog quantity signal	Input	2-way analog inputs, 12-bit resolution, input range -9.5 to +9.5V. Where Al2 is fixed as the torque limit input.
Analog quantity signal	Output	None
Messaging function		RS485 communication, Modbus protocol. The main controller can control the position/speed/torque of the servo via RS485, up to 32 control stations.
Display panel and button operation		5 buttons (Mode, Set, Left, Up, Down) and 6 digital tubes
Regenerative discharge braking resistor		Built-in 100W40Q braking resistor. An external braking resistor is required for frequent braking.

Combination of drive model and motor

Driver model	Motor Model	Power (KW)
LCDA4-XXA2	005L02-40M00130	0.05
	01L02-40M00330	0.1
	02L02-60M00630	0.2
LCDA4-XXB2	04L02-60M01330	0.4
	06L02-60M01930	0.6
	04L02-80M01330	0.4
	07L02-80M02430	0.75
	07M02-80M03520	0.75
	07L02-90M02430	0.75
	07M02-90M03520	0.75
	06L02-110M02030	0.6
	08L02-110M04020	0.8
LCDA4-XXC2	10L02-80M04025	1.0
	10L02-90M04025	1.0
	10L02-130M04025	1.0
LCDA4-XXC3	12L02-110M04030	1.2
	15L02-110M05030	1.5
	12L02-110M06020	1.2
	18L02-110M06030	1.8
	13L02-130M05025	1.3
	15L02-130M06025	1.5
	10M02-130M10010	1.0
	15M02-130M10015	1.5
LCDA4-XXD3	20L02-130M07725	2.0
	26M02-130M10025	2.6
	23M02-130M15015	2.3
