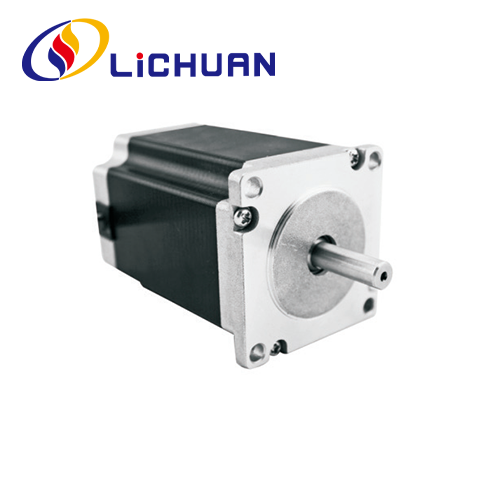

57 Series 2 Phase Nema 23 Hybrid Stepper Motor

Product Description

LICHUAN® warmly welcome you to wholesale 57 Series 2 Phase Nema 23 Hybrid Stepper Motor from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.

57 series 2 phase Nema 23 hybird stepper motor, the use of high-quality raw materials and high-specification permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise, good dynamic characteristics, quality and reliable. Motor length 41mm ~ 112mm between the torque range: 0.6N.m ~ 3.0N.m,motor shaft diameter 6.35/8/10mm. 57 series 2 phase Nema 23 hybird stepper motor can be match for 4 type driver:RS485. Canopen. Ethercat. Pulse control drivers. they are are designed to match with Lichuan’s 2 phase stepping drivers MC542 and MC556 and mini driver , pls check hybrid stepper motor driver on catalog if u wanna know more driver information.

Application:

The application scenarios of stepper motors are very wide, mainly including the following aspects:

1. Machine tool field: Stepper motors can be used for position control and feed control of CNC machine tools, enabling high-precision machining processes. In addition, stepper motors are widely used in other machine tool equipment, such as lathes, grinders, milling machines, etc.

2. Electronic automation equipment: Stepper motors are widely used in electronic automation equipment, such as printing equipment, SMT machines, card issuers, bottling equipment, etc. The precise positioning ability of stepper motors enables these devices to complete work tasks quickly and efficiently.

3. Animation equipment and stage lighting: The fast response and high-precision control ability of stepper motors make them widely used in animation equipment and stage lighting. The rotating platform and lighting brightness adjustment functions in the stage lighting system can be achieved through a stepper motor.

4. Robot robot technology: The stepper motor is a commonly used driving device in robot robot technology. Robots require precise position and attitude control, and stepper motors can provide high-precision control capabilities. Due to their simple and reliable structure, their lifespan is limited, making them suitable for applications in the field of robotics

Electrical Performance Parameters

Item	Specifications
Step Angle Accuracy	±5%(Full Step)
Resistance Accuracy	±10%(20℃)
Inductance Accuracy	±20%(1KHZ)
Temperature Rise	80Cmax(rated current, 2 phase power on)
Ambient Temperature	20℃~* 50℃
Insulation Resistance	100MQMin 500VDC
Dielectric Strength	500V AC1 minute
Allowable Radial Load	0.02mm Max. (450g load)
Allowable Thrust Load	0.08mm Max. (450g load)
Radial Max Load	75N(20mm from flange surface)
Shaft Max Load	15N

Series	Step Angle(】	Motor Length(mm)	Holding Torque(N.m)	Rated Current(A)	Phase Resistance(Q)	Phase Inductance(mH)	Rotor Inertia(g.cm²)	Motor Weight (Kg)	Lead Wire(No.)
LC57HS41	1.8	41	0.6	2.5	1.2	3.2	120	0.5	4
LC57HS56	1.8	56	1.0	3.0	0.8	2.4	300	0.68	4
LC57HS64	1.8	64	1.5	3.0	0.8	2.3	400	1.08	4
LC57HS76	1.8	76	2.0	3.0	1.0	3.5	480	1.2	4
LC57HS84	1.8	84	2.2	3.0	1.1	2.1	530	1.25	4
LC57HS100	1.8	103	2.6	3.0	1.4	5.5	700	1.58	4
LC57HS112	1.8	113	3.0	3.0	1.6	6.8	800	1.78	4

Above are representative products. Products can be customized!

Shape and installation size(unit:mm)

Shaft Mode of Motor

Model	Shaft Dlameter(mm)	Shaft Extension(mm)	Shaft Length(mm)]
LC57HS41	φ6.35	D-cut 0.5X19.5	21
LC57HS56	φ6.35 or φ8	D-cut 0.5X19.5	21
LC57HS64	φ6.35 or φ8	D-cut 0.5X19.5	21
LC57HS76	φ6.35 or φ8	D-cut 0.5X19.5	21
LC57HS84	φ8	D-cut 0.5X19.5	24
LC57HS100	φ8	D-cut 0.5X19.5	21
LC57HS112	φ8 or φ10	D-cut 0.5X19.5	21

Shape and installation size(unit:mm)

Shaft Mode of Motor

Application Wiring Diagram

A complete steppr motor control system should include the prduct shown below

Lichuan Factory Production Products Machine

Carving Machine
Coating Equipment
Fiber laster Marking Machine
Screwing Machine
Testing Machine
UV Printer

Automatic Soldering Machine
Holding Torque Testing Machine
Screw Machine
Oscillograph Machine

Industry Applications

Robotic Arm
Laser Cutting Machine
3D Printing
CNC Machine
Automatic Assertmbly
Engraving Machine
