60 Series 2 Phase Nema 24 Hybrid Stepper Motor
  • 60 Series 2 Phase Nema 24 Hybrid Stepper Motor60 Series 2 Phase Nema 24 Hybrid Stepper Motor

60 Series 2 Phase Nema 24 Hybrid Stepper Motor

High quality 60 Series 2 Phase Nema 24 Hybrid Stepper Motor made in China. LICHUAN® is 60 Series 2 Phase Nema 24 Hybrid Stepper Motor manufacturer and supplier in China.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale 60 Series 2 Phase Nema 24 Hybrid Stepper Motor from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.

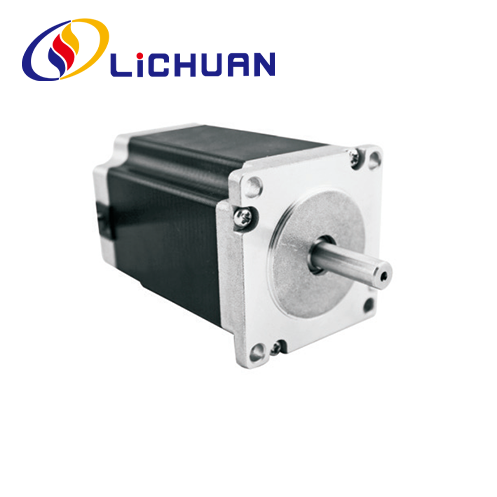

60 series 2 phase Nema 24 hybird stepper motor, the use of high-quality raw materials and high-specification permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise, good dynamic characteristics, quality and reliable. Motor length 58mm ~ 112mm between the torque range: 1.6N.m ~ 3.8N.m,motor shaft diameter 8mm. 60 series 2 phase Nema 24 hybird stepper motor can be match for 4 type driver:RS485. Canopen. Ethercat. Pulse control drivers. they are are designed to match with Lichuan’s 2 phase stepping drivers MC660 and mini driver , pls check hybrid stepper motor driver on catalog if u wanna know more driver information.

Electrical Performance Parameters

Item Specifications
Step Angle Accuracy ±5%(Full Step)
Besistance Accuracy ±10%(20℃)
Inductance Accuracy ±20%(1KHZ)
Temperature Rise 80°C max(rated current, 2 phase power on)
Ambient  Temperature 20℃~*  50℃
Insulation Resistance 100MQMin    500VDC
Dielectric Strength 500V AC 1 minute
Allowable Radial Load 0.02mm Max. (450g  load)
Allowable Thrust Load 0.08mm Max. (450g  load)
Radial Max Load 75N(20mm from flange surface)
Shaft Max Load 15N

Series Step
Angle(")
Motor
Length(mm)
Holding
Torque(N.m)
Rated
Current(A)
Phase
Resistance(Q)
Phase
Inductance(mH)
Rotor
Inertia(g.cm²)
Motor
Weight (Kg)
Lead
Wire(No.)
LC60HS58 1.8 58 1.6 3.0 0.42 2.65 300 0.85 4
LC60HS65 1.8 65 2.1 3.0 0.65 1.6 570 1.0 4
LC60HS78 1.8 76 2.5 3.0 0.5 1.66 620 1.1 4
LC60HS84 1.8 84 3.1 3.0 0.63 1.8 840 1.29 4
LC60HS102 1.8 102 3.5 3.0 0.75 2.4 1000 1.65 4
LC60HS112 1.8 112 3.8 3.0 1.56 3.9 1200 1.807 4

Above are representative products. Products can be customized!

Shape and installation size(unit:mm)


Shaft Mode of Motor

Model Shaft
Dlameter(mm)
Shaft
Extension(mm)
Shaft
ength(mm)
LC60HS58 φ8 D-cut 0.5X20 21
LC60HS65 φ8 D-cut 0.5X20 21
LC60HS78 φ8 D-cut 0.5X20 21
LC60HS84 φ8 D-cut 0.5 X20 21
LC60HS102 φ8 D-cut 0.5X20 21
LC60HS112 φ8 D-cut 0.5X20 21

Curves of Torque Frequency Characteristics


Motor Wirin Diagram



Application Wiring Diagram

A complete steppr motor control system should include the prduct shown below



Lichuan Factory Production Products Machine


  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications


  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
