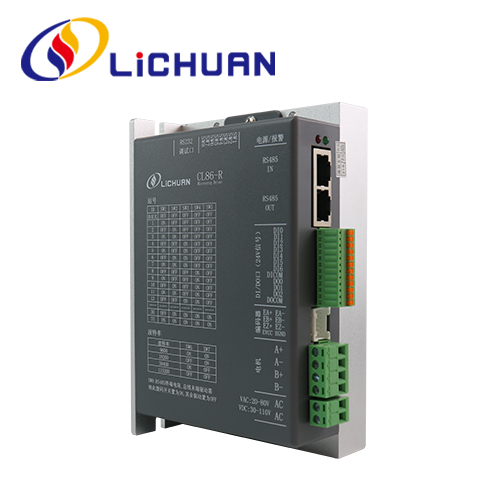

2 Phase RS485 Nema 34 Stepper Driver
  • 2 Phase RS485 Nema 34 Stepper Driver2 Phase RS485 Nema 34 Stepper Driver

2 Phase RS485 Nema 34 Stepper Driver

LICHUAN® as the professional manufacturer, we would like to provide you 2 Phase RS485 Nema 34 Stepper Driver. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® as one of the professional China 2 Phase RS485 Nema 34 Stepper Driver manufacturers and China 2 Phase RS485 Nema 34 Stepper Driver factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of 2 Phase RS485 Nema 34 Stepper Driver and so on. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation. We assure you of our high quality services at all time.

Each step drive of this series is manufactured based on a new generation 32-bit DSP technology, which is provided with the RS485 bus control function, supports the MODBUS-RTU communication protocol and can carry up to 32 axes for multi-axis synchronous bus control. The drive is provided with 15 internal positions and 15 internal velocities, supports functions such as automatic homing, absolute/relative positioning and JOG, etc., and can be directly controlled through its touch screen or controller with an RS485 interface.This driver can match for open loop and closed loop stepper motor Nema34 stepper motor ,more details pls check manual.

Communication specifications

➢ Communication interface: RS485;
➢ Communication protocol: Modbus RTU;
➢ Baud rate: 9600, 19200, 38400, 115200 (set by dialing SW6~SW7);
➢ Station No.: 1~31 (set by dialing SW1~SW5)
➢ Terminal resistance: 120Ω (set by dialing SW8)
➢ Check bit: without parity check (default), odd parity check, even parity check;

Product specifications

Drive model Parameter CL86-R OL86-R
Matched motor 60/86
Supply voltage 18~80VAC       36~110VDC
Maximum output current 8A
DI port input current 10~50mA
DI port input voltage 24V  DC
Encoder 1000-line incremental N/A
Temp.:0℃~   45℃.
Humidity:≤90% RH, without condensation.
Installation environment: without corrosive and flammable gases, without oil mist or dust, etc.
Vibration:<0.5G(4.9m/s2),10~60 Hz(non-continuous operation)
-20~65℃(without frost),<90% RH(without condensation)
Drive size 150*97.5*52.6
Drive weight

Lichuan Factory Production Products Machine

  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications

  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
