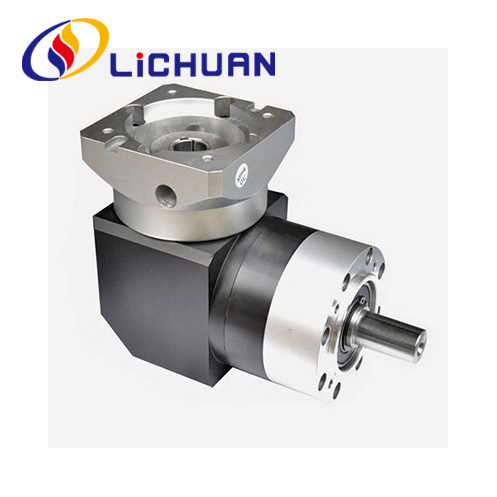

ZPLE Series Planetary Reducer
  • ZPLE Series Planetary ReducerZPLE Series Planetary Reducer

ZPLE Series Planetary Reducer

LICHUAN® is a leading China ZPLE Series Planetary Reducer manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our ZPLE Series Planetary Reducer have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale ZPLE Series Planetary Reducer from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

The ZPLE series precision planetary reducers have excellent workmanship and high cost-effectiveness. It can be compatible with all brands of servo motors in the market, with flexible design and can be customized according to different hole sizes of motors. The main function of a reducer is to slow down the motor speed, amplify torque, and increase inertia. It is widely used in various automation equipment and instruments in the field of motion control. This gear box can match for stepper motor and servo motor ,we have different ratio.

ZPLE Series Reducer (ZPLE060 ZPLE090 ZPLE120 ZPLE160)

4 Sizes Available 60mm,90mm,120mm,160mm
Rated Output Torque 8.5N.m~680N.m
Deceleration Ratio Single Grade 3,4,5,7,10
Double Stage 12,16,20,25,28,35,40,50,70,100
Class 3 80,100,125,140,175,200,250,350,400,500,700,1000
Feedback Back Lash Single Grade Precision Back Lash< 3 arc-min Standard Back Lash<8 arc-min
Double Stage Precision Back Lash<5 arc-min Standard Back Lash<10 arc-min
Class 3 Precision Back Lash<8 arc-min Standard Back Lash<12 arc-min

Characteristics of Lichuan planetary reducer

1. Cylindrical shell, beautiful appearance;
2. Closed design, compact structure;
3. High precision, good rigidity, and large load-bearing capacity;
4. Small size, high efficiency, long service life, and low noise;
5. Convenient installation and precise positioning of output end connection;
6. Suitable for deceleration transmission of AC servo motors, DC servo motors, and stepper motors.

Installation sequence of Lichuan planetary reducer and servo motor

1. Install the servo motor shaft into the gearbox input shaft;
2. Tighten the screws (connection between servo and reducer);
3. Tighten the screwdrivers on both sides evenly;
4. Lock the torque wrench on both sides tightly;
5. Insert the protective cover into the screw hole of the reducer.

Reducer Model Description

Specification Ordering Samples

Lichuan Factory Production Products Machine

  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications

  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
