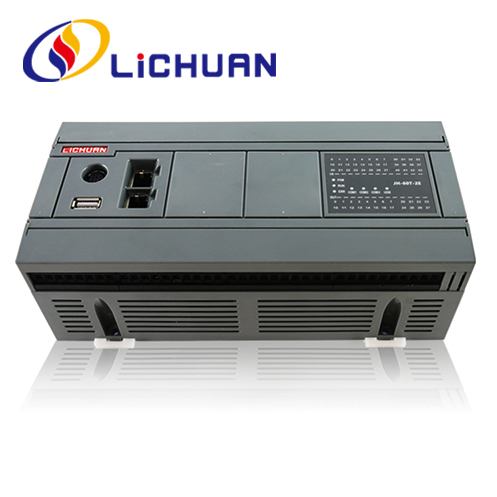

PLC JH Series 16 Points to 60 Points Automation Controller
  • PLC JH Series 16 Points to 60 Points Automation ControllerPLC JH Series 16 Points to 60 Points Automation Controller

PLC JH Series 16 Points to 60 Points Automation Controller

You can rest assured to buy PLC JH Series 16 Points to 60 Points Automation Controller from LICHUAN® factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

As a professional PLC JH Series 16 Points to 60 Points Automation Controller manufacture, you can rest assured to buy PLC JH Series 16 Points to 60 Points Automation Controller from our factory and LICHUAN® will offer you the best after-sale service and timely delivery. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices.

The multi-axis PLC controller based on the EtherCAT field bus has a bus transmission rate of 100Mbps, adopts a distributed clock, and combines the pulse axis with the bus axis to transmit data quickly, accurately and efficiently, which is convenient for users to get started quickly. It supports single-axis motion commands such as position, speed, torque, and origin reset, and supports multi-axis commands such as electronic gear, electronic cam, linear interpolation, circular interpolation, etc.: built-in multiple communication ports, RS232, RS485, USB, Ethernet. With perpetual calendar, expandable IO port.

PLC JH Series 16 Points to 60 Points Automation Controller Models


Point count Models
JH series No Ethernet Relay output DC Power
supply 		16/24/32/40/48/60 Take 16 points: JH-16R-D
AC Power
supply 		16/24/32/40/48/60 Take  16  points:JH-16R-A
Transistor
output
(NPN Type) 		DC. Power supply 16/24/32/40/48/60 [16~24]Take 16 points: JH-16T-D
[32~60]Take  32  points:JH-32T/P-D
AC Power
supply 		16/24/32/40/48/60 [16~24]Take 16 points: JH-16T-A
32~60]Take  32  points:JH-32T/P-A
With Ethernet Relay output DC. Power supply 16/24/32/40/48/60 Take  16 points:JH-16R-E-D
AC Power
supply 		16/24/32/40/48/60 Take  16 points:JH-16R-E-A
Transistor
output
(NPN Type) 		DC Power
supply 		16/24/32/40/48/60 [16~24]Take 16 points: JH-16T-E-D
[32~60]Take 32 points:JH-32T/P-2E-D
AC Power
supply 		16/24/32/40/48/60 [16~24]Take 16 points: JH-16T-E-A
[32~60]Take 32 points: JH-32T/P-2E-A

Without Ethernet (there are two models at 24 points) the other model is: Relay DC: JH-16R-D/AC: JH-1212R-A transistor
DC:JH-1212T-D/AC:JH-1212T-A
Note 1:16-24 points with 1 Ethernet port, 32-60 points with 2 Ethernet port,JH-1212T/R model without Ethernet port.

JH2 series models


Relay output Transistor output (NPN Type)
count of bus axes DC Power supply AC Power supply DC Power supply AC Power supply
16 Point 8 Axis JH2-16R-E-D JH2-16R-E-A JH2-16T-E-D JH2-16T-E-A
24 Point 8 Axis JH2-24R-E-D JH2-24R-E-A JH2-24T-E-D JH2-24T-E-A
32 Point 8 Axis JH2-32R-E-D JH2-32R-E-A JH2-32T-E-D JH2-32T-E-A
32 Point 16 Axis

JH2-32T2-E-D JH2-32T2-E-A
32 Point 32 Axis

JH2-32T4-E-D JH2-32T4-E-A
40 Point 8 Axis JH2-40R-E-D JH2-40R-E-A JH2-40T-E-D JH2-40T-E-A
48 Point 8 Axis JH2-48R-E-D JH2-48R-E-A JH2-48T-E-D JH2-48T-E-A
60 Point 8 Axis JH2-60R-E-D JH2-60R-E-A JH2-60T-E-D JH2-60T-E-A

PLC JH Series 16 Points to 60 Points Automation Controller Parameters

The following are the technical specifications of PLC with Ethernet port, the other specifications of PLC without Ethernet port are the same

SeriesJH- JH-16T/R-E JH-24T/R-E JH-32T/P/R-2E JH-40T/P/R-2E JH-48T/p/R-2E JH-60T/P/R-2E
Total Points 16 Point 24 Point 32 Point 40 Point 48 Point 60 Point
Number of input points 8 14 16 24 24 36
Digital quantity output points 8 10 16 16 24 24
Output Mode T:NPN/r: Relay
High-speed input counter 3-way AB phase 4-way AB phase
Maximum frequency for high speed input 200khz
Right module 16 Self
Left extension Support for communication extensions
BD board Support1 Support 2
Serial communi cation port RS232/RS485*2
USB Port None Program download/firmware upgrade
Ethernet port Support 1 Support2
Number of pulse axes T:4Axis/r: None T:4Axis/P:8 Axis/r: None T:4Axis/P: 12 Axis/r: None
Maximum frequengy for high speed output 200khz
The busfunction None
Number of bus axes None
Program capacity 30k
Perpetual calendar Support
Size(mm 114*100*73 114*100*73 155*100*73 155*100*73 278*100*73 278*100*73
Protection level IP20
Working environment temperature 5~55°C(41~131°F) without condensation
Relative humidity 5~95%
Transportation
ambient temperature 		-25~70°℃(-13~158°F)
Vibration resistance 10M/s²
Workingaltitude 0~2000M, above 2000M,the ambient temperature is 40°C(104°F)

JH2 compared to JH (other parameters are the same, different parameters are as follows)

Series model
JH2- 		JH2-16T/R-E JH2-24T/R-E JH2-32T/T2 /T4/R-E JH2-40T/R-E JJH2-48T/R-E JH2-60T/R-E
High-speed input counter 3-way AB phase(x0~x5) 4-way AB phase(x0~x7)
Ethernet communi cation port None Support1
Number of pulse
axes 		T:4Axis/r:--- T:5 Axis/r:-- T:8Axis/r:--
The bus function EtherCAT bus
Number of bus
axes 		8 Axis T:8/T2:16/
T4:32/r:8 		8 Axis
Program capacity 60k
Description Note: If the pulse and bus axis total 16 axis, the program can be custom free allocation.
f the number of pulse axes is defined as 2 axes, the bus axis is 14 axes

PLC JH Series 16 Points to 60 Points Automation Controller Dimension Drawing



Host Size(mm)
a b C
14-24 Point 114 100 73
32-40 Point 155 100 73
48-60 Point 278 100 73



PLC JH Series 16 Points to 60 Points Automation Controller parameters

He series digital input/output extensions
Models Function Specifications
HE-8T 4-channel digital input, 4-channel transistor output DC24V power supply, no external power supply
NPN  input
Input Point maximum frequency 10Khz
R: relay output
T: NPN transistor output
R response time: About 10ms
T response time: about 50 US
R Max Output Current: MAX 2A
T maximum output current: 0.3 a per point
HE-16T 8-channel digital input, 8-channel transistor output
HE-16R 8 channel digital input, 8 channel relay output
HE-32T 16 channel digital input, 16 channel transistor output
HE-32R 16 channel digital input, 16 channel relay output
HE-40T 24 channel digital input, 16 channel transistor output

PLC JH Series 16 Points to 60 Points Automation Controller Dimension Drawing



Extension Size(mm)
a b C
Number spread: 8-16 points. 66 100 73
Number spread: 24-32 points 114 100 73
