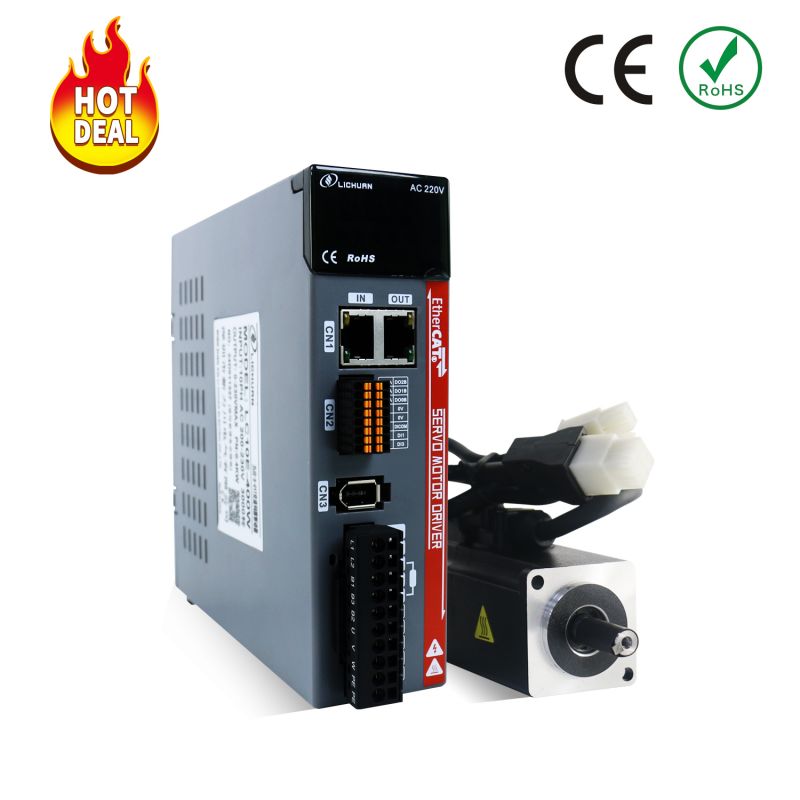

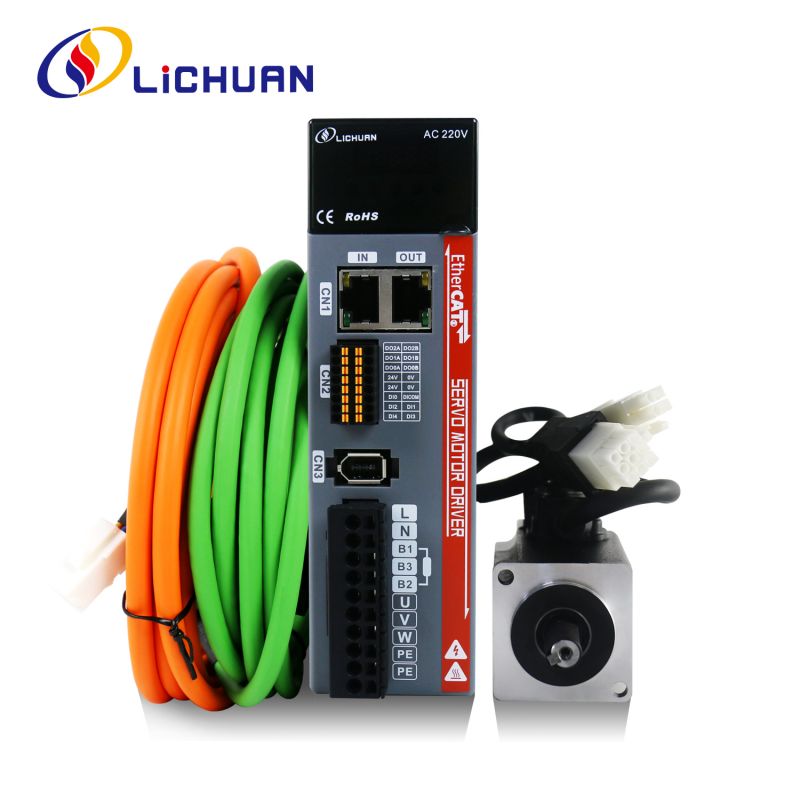

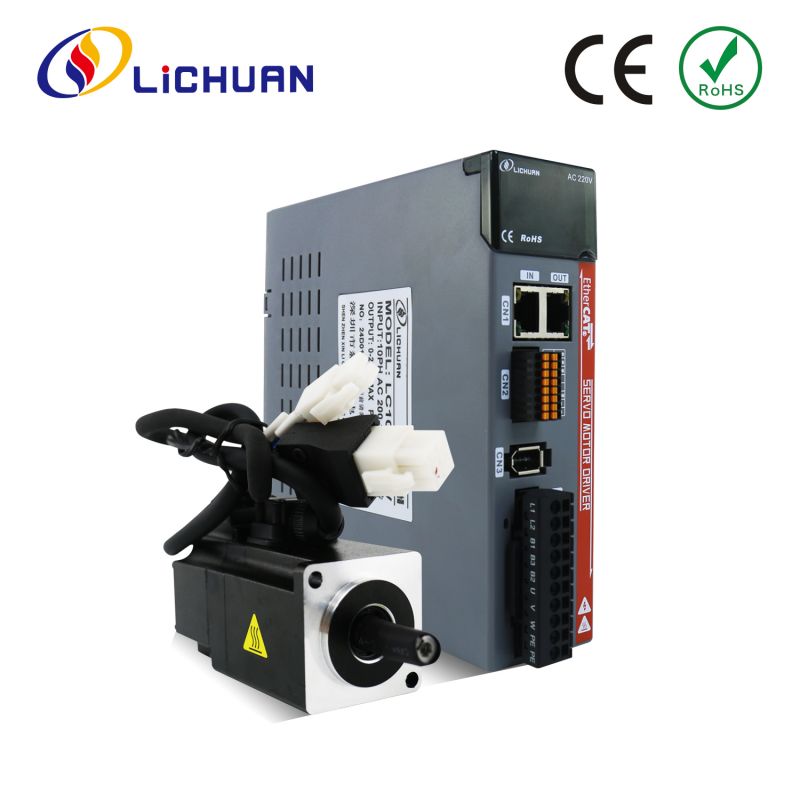

Ethercat AC Servo Motor 100W 3000rpm 0.32nm A Kit for CNC Machine

You can rest assured to buy Ethercat AC Servo Motor 100W 3000rpm 0.32nm A Kit for CNC Machine from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Ethercat AC servo motor 100W 3000rpm 0.32nm a kit for cnc machine. contains 0.05KW 0.1KW power specifications, servo motor running smoothly, the noise is very small, suitable for a variety of High precision control applications for industrial automation equipment.The servo motor This servo motor supports 17bit incremental, 17bit absolute encoder ,23 bit incremental encoder ,23 bit absolute encoder and Break.This servo motor can be used in various automated machines, such as CNC, milling machine, packing machine, bag machine, laser, engraving machine, etc.

Input power	Single-phase 220V
Working environment	Temperature	0～45℃
	Humidity	≤90%RH, no condensation
	Elevation	Altitude ≤1000m
	Installation environment	No corrosive gas, flammable gas, oil mist or dust.
	Installation mode	Vertical
Encoder		Support 17-bit incremental/absolute value encoder, 23-bit incremental/absolute value encoder
Output power	24Vvoltage output	100mA, supply power to DI port
Control signal	Digital input	5-channel common digital input, function can be configured.
Control signal	Digital output	3-channel digital output, function can be configured.
Communication function		Ethercat communication,
Display panel and key operation		5 keys (Mode, Set, Left, Up, Down) and 6 nixie tubes
Braking resistor		Built-in 50W 40Ω braking resistor. For frequent braking occasions, an external braking resistor is required.
