Boost Production Line With 2 Phase I/O Control Stepper Driver

Product Description

High quality Boost Production Line With 2 Phase I/O Control Stepper Driver made in China. LICHUAN® is Boost Production Line With 2 Phase I/O Control Stepper Driver manufacturer and supplier in China.

Product Introduction

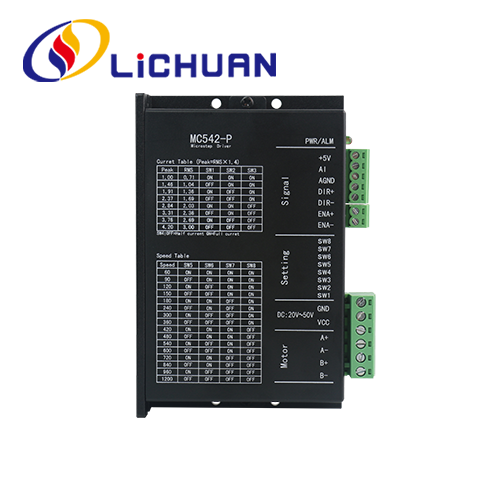

The 542P driver sets the maximum speed through a dial switch, and then adjusts the speed through a potentiometer to operate at any speed.the driver can be match for 2 phase Nema23 stepper motor ,Mainly used to replace ordinary speed regulating motors, compared to speed regulating motors, it has advantages such as fast acceleration and deceleration, small size, and strong rigidity.

Technical parameter

1. Electrical indexes
● Voltage input range: DC: 20V~50V
● Max. output current: 4.2A
● Analog input voltage range: 0~5V (0~10V input customizable)
● Insulation resistance: 500M
2. Environmental indexes
● Storagetemperature:-20°C~80°C
● Operatingtemperature:0°C~55°C
● Operating humidity: 90%RH (without condensation)
● Vibration frequency: < 0.5G (4.9m/s2), 10Hz~60Hz (non-continuous operation)

Technical parameter

● Voltage input range: DC20V~50v
● Maximum peak current: 4.2A
● Analog input voltage range: 0~5V (can be customized as 0~10V input)
● Insulation resistance:500M
● With overcurrent, overvoltage and other protection functions.

Environmental parameters

● Storage temperature:-20°C～80 ℃
● Operating temperature:0° ℃~55 ℃
● Operating humidity:90%RH (non-condensing)
● Vibration frequency:less than 0.5G(4.9m/s2)10Hz~ 60Hz (discontinuous operation)
● Avoid dust, oil stains, corrosive gases, places with too much humidity and too strong vibration, and prohibit
flammable gas and conductive dust

Drive function description

Drive function	Instructions
Speed range setting	The four DIP switches SW5~SW8 are used to set the speed range of the drive. There are 16 speed ranges in total. When the user sets the speed, the drive should be stopped first. For the setting of the specific speed range, ple ase follow the instructions on the drive panel.
Output current setting	8 output currents can be set for the Driver through 3 dial switches SW1~SW3.See driver panel instruction for output current settings.
Automatic half -flow function	Automatic half current function can be set for the Driver through switch SW4. OFF means that quiescent current is set to half of operating current; ON means that quiescent current and dynamic current are the same. SW4 shall be set as OFF for general use to reduce heat generation of the motor and the driver and to improve reliability. About 0.3s after pulse train stops, current will automatically reduce 50%(actual value 55%) and theoretically, heat generation will reduce 65%.
Signal interface	+5V and AGND are the positive and negative terminals of the 5V power output; Al is the analog voltage input terminal; DIR+ and DIR- are the positive and negative terminals of the direction signal: ENA+ and ENA- are the positive and negative terminals of the enable signal.
Motor interface	A+and A- connect to positive and negative terminals of A phase winding of stepper motor; B+ and B-connect to positive and negative terminals, When A and B phase windings are switched, the Motor direction on will be reversed;
Power connector	DC power supply, operation input voltage range: 20V~50VDC, 36VDC operation voltage is suggested, power supply shall be higher than 100W.
Indicator light	There is 1 green indicator light and 1 red indicator light on the Driver. The green one is power indicator light, it illuminates when the Driver is connected to power supply; the red one is failure indicator light, it illuminates when over-voltage or over-current failure occurs. Red indicator light goes off after failure is eliminated. Failure of the Driver can only be eliminated by re-connecting to power supply and reusing.
Installation Notes	Dimensions of the Driver:117x78x34mm, installation pitch of holes: 111mm. Both horizontal and vertical installations can be selected (vertical installation is suggested). The Driver shall be installed closely against metal cabinet for heat dissipation.

Parameter setting

The speed range, dynamic and half/full current of the MC542P drive can be set as follows through the 8-bit DIP switch:

Working current setting

Output peak current	Output average current	SW1	SW2	SW3
1.0A	0.71A	on	on	on
1.46A	1.04A	off	on	on
1.91A	1.36A	on	off	on
2.37A	1.69A	off	off	on
2.84A	2.03A	on	on	off
3.31A	2.36A	off	on	off
3.76A	2.69A	on	off	off
4.2A	3.0A	off	off	off

Installation size (unit: mm)

Speed range setting

SPD	SW5	SW6	SW7	SW8
60	on	on	on	on
90	off	on	on	on
120	on	off	on	on
150	off	off	on	on
180	on	on	off	on
240	off	on	off	on
300	on	off	off	on
360	off	off	off	on
420	on	on	on	off
480	off	on	on	off
540	on	off	on	off
600	off	off	on	off
720	on	on	off	off
840	off	on	off	off
960	on	off	off	off
1200
