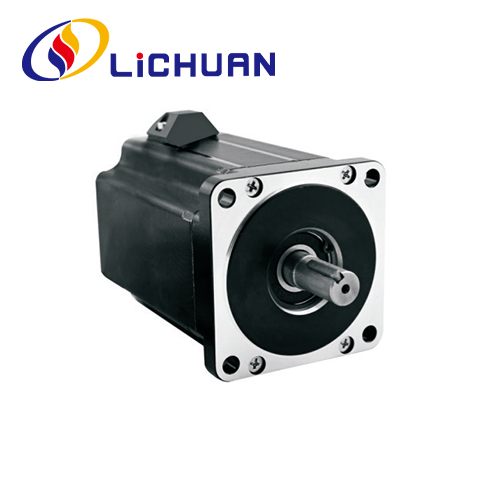

86 Series 3 Phase Nema 34 Hybird Stepper Motor
Wholesale quality discount 86 Series 3 Phase Nema 34 Hybird Stepper Motor. LICHUAN® is 86 Series 3 Phase Nema 34 Hybird Stepper Motor manufacturer and supplier in China.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 86 series 3 phase Nema 34 hybird stepper motor Series from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.
86 series 3 phase Nema 34 hybird stepper motor, the use of high-quality raw materials and high-specification permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise, good dynamic characteristics, quality and reliable. Motor length 76mm ~ 156mm between the torque range: 3.0N.m ~ 10N.m,motor shaft diameter 12/14mm. they are are designed to match with Lichuan’s 3 phase stepping drivers 3MC580 or LC3722D and mini driver , pls check hybrid stepper motor driver on catalog if u wanna know more driver information.
Electrical Performance Parameters
| Item | Specifications |
| Step Angle Accuracy | ±5%(Full Step) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80°C max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~* 50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450gload) |
| Allowable Thrust Load | 0.08mm Max. (450gload) |
| Radial Max Load | 130N(20mm from flange surface) |
| Shaft Max Load | 30N |
| Series |
Step Angle(") |
Motor Length(mm) |
Holding Torque(N.m) |
Rated Current(A) |
Rotor Inertia(g.cm²) |
Phase Resistance(Q) |
Phase Inductance(mH) |
Matched Driver |
Lead Wire(No.) |
Motor Weight (Kg) |
| LC86HS376 | 1.2 | 76 | 3.0 | 3.0 | 1320 | 0.5 | 0.9 | 3MC580 | 3 | 2.0 |
| LC86HS398-H | 1.2 | 98 | 4.0 | 2.0 | 2400 | 4.6 | 14.6 | LC3722A | 3 | 3.0 |
| LC86HS398 | 1.2 | 98 | 4.0 | 5.8 | 2400 | 0.7 | 1.5 | 3MC580 | 3 | 3.0 |
| LC86HS3114-H | 1.2 | 114 | 6.0 | 3.0 | 3480 | 2.0 | 8.0 | LC3722A | 3 | 4.0 |
| LC86HS3114 | 1.2 | 114 | 6.0 | 5.8 | 3480 | 0.9 | 2.17 | 3MC580 | 3 | 4.0 |
| LC86HS3129-H | 1.2 | 129 | 8.5 | 5.0 | 3900 | 1.08 | 6.5 | LC3722A | 3 | 4.6 |
| LC86HS3156-H | 1.2 | 156 | 10 | 5.0 | 4600 | 1.29 | 8.8 | LC3722A | 3 | 5.2 |
Above are representative products. Products can be customized! Models with H are high-voltage models and suitable for high
speed; models without H are low-voltage models and suitable for low speed.
Shape and installation size(unit:mm)
Shaft Mode of Motor
| Model |
Shaft Diameter(mm) |
Shaft Extension(mm) |
Shaft Length(mm) |
| LC86HS376 | φ14 | Keyway 4x20 | 35 |
| LC86HS398-H | φ12 | Keyway 4x20 | 30 |
| LC86HS398 | φ12 | Keyway 4x20 | 30 |
| LC86HS3114-H | φ14 | Keyway 5x25 | 35 |
| LC86HS3114 | φ14 | Keyway 5x25 | 35 |
| LC86HS3129-H | φ14 | Keyway 5 x25 | 32 |
| LC86HS3156-H | φ14 | Keyway 5x 25 | 35 |
|
|
|||
| Motor Wirin Diagram | |||
Curves of Torque Frequency Characteristics
Motor Wirin Diagram
Application Wiring Diagram
A complete steppr motor control system should include the prduct shown below
Lichuan Factory Production Products Machine
-
Carving Machine -
Coating Equipment -
Fiber laster Marking Machine -
Screwing Machine -
Testing Machine -
UV Printer
-
Automatic Soldering Machine -
Holding Torque Testing Machine -
Screw Machine -
Oscillograph Machine
Industry Applications
-
Robotic Arm -
Laser Cutting Machine
-
3D Printing -
CNC Machine -
Automatic Assertmbly -
Engraving Machine
