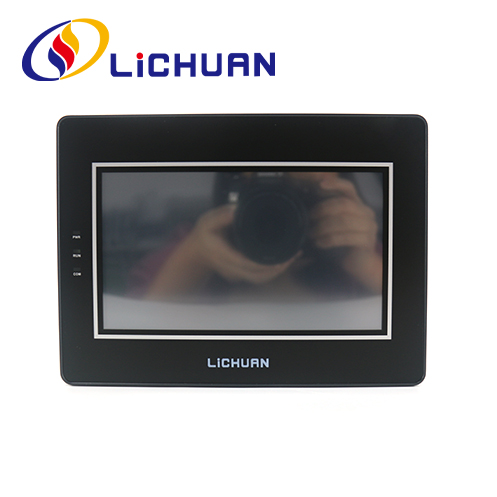

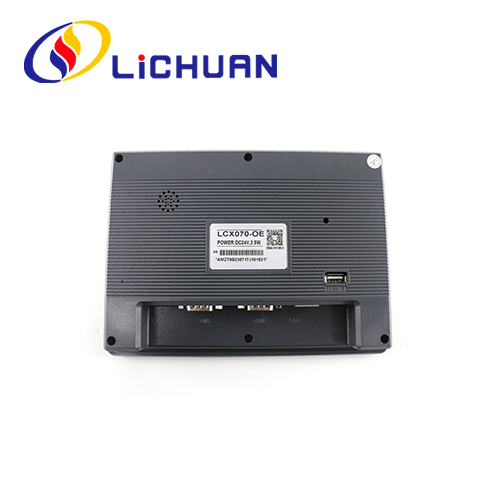

7 inch HMI Ethernet Touch Screen
  • 7 inch HMI Ethernet Touch Screen7 inch HMI Ethernet Touch Screen
  • 7 inch HMI Ethernet Touch Screen7 inch HMI Ethernet Touch Screen

7 inch HMI Ethernet Touch Screen

Welcome to wholesale 7 inch HMI Ethernet Touch Screen from us, every request from customers is being replied within 24 hours. LICHUAN® is the professional manufacturer, we would like to provide you 7 inch HMI Ethernet Touch Screen and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® is a professional 7 inch HMI Ethernet Touch Screen manufacturers and suppliers in China. If you interested in 7 inch HMI Ethernet Touch Screen products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Lichuan HMI widely use to industrial automatic equipment and cnc machines and dedicate to provide a easyuse easy-install human Machine Interfaces(HMI) to our customers. We have HMI with Ethernet and RS485/RS232/RS422 communication options and OEM logo is acceptable.we are support programming software for clients. Our HMI touch screen have 4.3inch. 7 inch ,10.1inch ,more details pls check HMI manual.

7 inch HMI Ethernet Touch Screen Models

Module Specifications
LCX070-ME 7 inch, DC19-30V, Two serial port, 128Mbyte SPI Nand
Flash, Resistive touch screen,Ethernet support;
port3:RS232 (Reserve)

7 inch HMI Ethernet Touch Screen Parameters

Show Dimensions Product model Overall dimensions Effective display area size Opening size Recommended opening size
7inch LCX070 203*149*34mm 153.84*85.63mm 190*136mm 192*138mm

Products Parameters

Product Specification
Hardware Performance Module LCX070-ME
operating system LINUX
Display Size 7" TFT LCD
Resolution(Px) 800X480
Colors 16.77M Colors
Brightness 400 cd/m2
Backlight LED (Support backlight adjustment)
LED life 20000 hours
Touch screen 4-wire resistive touch screen(Surface hardness 4H)
CPU 64-bit ,1GHz Main frequency, with 64MB DDR memory
Memory 128Mbyte SPI Nand Flash
RTC Real-time clock built-in
Buzzer Built-in
Ethernet Support (Optional)
4G Internet of Things Customized, according to customer requirement
Audio playback Customized, according to customer requirement
I2C External keyboard Customized, according to customer requirement
Save power failure data Support
USB port 1 USB2.0 Device port (TYPE-C USB upgrade port)
USB port 2 USB2.0 HOST port (USB flash disk upgrade port)
Program download method USB,U disk, Ethernet(Only supported for Ethernet type)
U disk Support
Communication port Port 1:RS232,RS485,RS422
Port 2:RS485
Port 3:RS232 (Reserve)
Electrical Specifications Maximum power consumption 3.5W
Voltage range DC 19-30V
Power protection Have +/-4KV lightning surge protection capability
The allowed loss of power <5ms
CE&ROHS Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge+/-4KV,EFT:+/-1.2KV;Electrostatic contact discharge +/-5KV;Electrostatic air discharge+/-5KV.
Environmental Specifications Operating temperature -10℃~50℃
Storage temperature -30℃~70℃
Environmental humidity 10~90%RH(non-condensing)
Vibration 10-25Hz (X, Y, Z direction, 2g/30 min)
Cooling way Natural air cooling
The Other Parameters Protection grade The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20
Overall dimensions 203*149*34mm
Effective display area size 153.84*85.63mm
Opening size 190*136mm
Recommended opening size 192*138mm
The  weight 492g
Software Upper:High_Performance_HMI

Lichuan Factory Production Products Machine

  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications

  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
