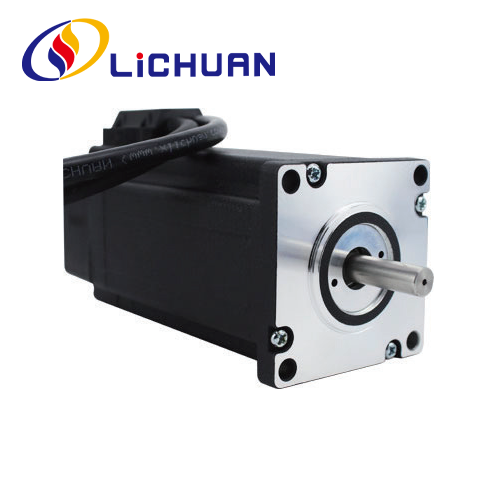

60 Series 2 Phase Nema 24 Closed Loop Stepper Motor
Low Price Quality 60 Series 2 Phase Nema 24 Closed Loop Stepper Motor In Stock. LICHUAN® is 60 Series 2 Phase Nema 24 Closed Loop Stepper Motor manufacturer and supplier in China.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 60 Series 2 Phase Nema 24 Closed Loop Stepper Motor from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.
60 series 2 phase Nema24 closed loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 90mm ~ 152mm, the torque range: 2N.m ~ 5.5N.m, motor shaft diameter 8mm or 10mm. 60 series 2 phase Nema24 closed loop stepper motor can be match for 4 type driver:RS485. Canopen. Ethercat. Pulse control drivers.
Electrical Performance Parameters
| Item | Spedfications |
| Step Angle Accuracy | ±5%(Full Step) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80C max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~*50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450gload) |
| Allowable Thrust Load | 0.08mm Max. (450gload) |
| Radial Max Load | 75N(20mm from flange surface) |
| Shaft Max Load | 15N |
| Technical Data | |||||||
| Series |
Step Angle(') |
Length (mm) |
Holding Torque (N.m) |
Phase Current(A) |
Rotational Inertia(g.cm²) |
Weight (kg) |
Encoder Resolution(PPR) |
| LC60H265 | 1.8 | 90 | 2.0 | 4.0 | 560 | 1.0 | 1000 |
| LC60H278 | 1.8 | 104 | 2.3 | 4.0 | 570 | 1.1 | 1000 |
| LC60H286 | 1.8 | 108 | 2.8 | 4.5 | 620 | 1.45 | 1000 |
| LC60H2102 | 1.8 | 126 | 4.5 | 5.0 | 1000 | 1.87 | 1000 |
| LC60H2112 | 1.8 | 137 | 4.8 | 5.8 | 1200 | 2.1 | 1000 |
| LC60H2127 | 1.8 | 152 | 5.5 | 5.8 | 1370 | 2.45 | 1000 |
Above are representative products. Products can be customized!
Shape and installation size (unit:mm)
Note: 60 series motors with 50x50mm holes are available. Please confirm with salesman about motor mode!!
Shaft Mode of Motor
| Model |
Shaft Diameter(mm) |
Shaft Extension(mm) |
Shaft Length(mm) |
| LC60H265 | φ8 orφ10 | D-cut 0.5x15 | 25 |
| LC60H278 | φ8 orφ10 | D-cut 0.5x15 | 25 |
| LC60H286 | φ8 orφ10 | D-cut 0.5x15 | 25 or 31 |
| LC60H2102 | φ8 orφ10 | D-cut 0.5x15 | 25 or 31 |
| LC60H2112 | φ8 orφ10 | D-cut 0.5 x 15 | 25 |
| LC60H2127 | φ8 orφ10 | Keyway 3x16 | 35 |
Motor Wiring Diagram
Motor Wire Colors
Definitions of Encoder Lead Colors
| 1 | yellow | EB+ |
| 2 | green | EB- |
| 3 | black | EA+ |
| 4 | blue | EA- |
| 5 | Red | +5VCC |
| 6 | White | EGND |
Notes
1.Phases shall be correctly connected while connecting motor and the Driver.
2. Obvious heat generation of motor may occur under different driving conditions. Surface temperature of motor is allowed to exceed 85 ℃ during operation.
3.Motor must be positioned by installation rabbet on
front cover of motor, attention shall be paid on error
matching, and the concentricity between motor shaft
and load shall be controlled strictly.
Application Wiring Diagram
A complete steppr motor control system should include the prduct shown below
product Packaging
Lichuan Factory Production Products Machine
-
Carving Machine -
Coating Equipment -
Fiber laster Marking Machine -
Screwing Machine -
Testing Machine -
UV Printer
-
Automatic Soldering Machine -
Holding Torque Testing Machine -
Screw Machine -
Oscillograph Machine
Industry Applications
-
Robotic Arm -
Laser Cutting Machine
-
3D Printing -
CNC Machine -
Automatic Assertmbly -
Engraving Machine
