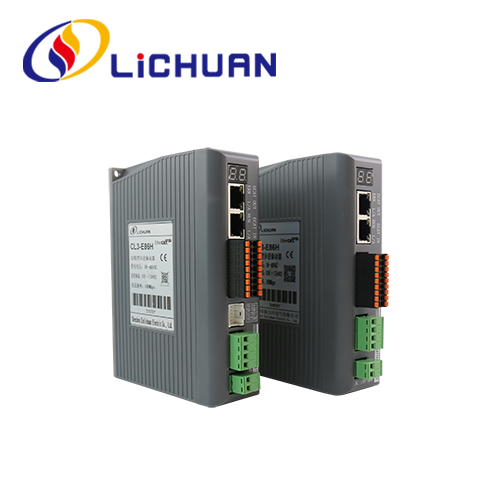

2 Phase Ether CAT Nema23 Nema34 Stepper Driver
  • 2 Phase Ether CAT Nema23 Nema34 Stepper Driver2 Phase Ether CAT Nema23 Nema34 Stepper Driver

2 Phase Ether CAT Nema23 Nema34 Stepper Driver

LICHUAN® as a professional 2 Phase Ether CAT Nema23 Nema34 Stepper Driver manufacturer, you can rest assured to buy 2 Phase Ether CAT Nema23 Nema34 Stepper Driver from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


LICHUAN® warmly welcome you to wholesale LICHUAN® as a professional 2 Phase Ether CAT Nema23 Nema34 Stepper Driver manufacturer, you can rest assured to buy 2 Phase Ether CAT Nema23 Nema34 Stepper Driver from our factory and we will offer you the best after-sale service and timely delivery. from our factory in China. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.

The EtherCAT bus-type closed-loop stepper driver is a digital closed-loop stepper driver that combines the latest closed-loop control algorithm and EtherCAT bus communication protocol. This product supports the CoE (CANopen over EtherCAT) protocol and conforms to the CIA402 standard. Compared with the traditional pulse-type driver, the bus-type driver has simpler wiring, real-time data transmission, high-reliability communication, and can realize multi-axis synchronous communication control. This series of drivers sample advanced closed-loop algorithms, which can effectively suppress motor temperature rise, reduce motor vibration, and effectively increase motor torque. It can be adapted to 86 series closed-loop stepper motors. This driver can match for open loop and closed loop stepper motor Nema23 and Nema34, more details pls check manual.

Communication specifications

EtherCAT
Communication
specifications
Physical layer 100BASE-TX
Communication connector RJ45×2(input: CN6A; output: CN6B)
Network
architecture
Serial connection
Transmission rate 2 x1Mbps(full-duplex)
Length of data frame Max. 1484 bytes
Application layer protocol CoE: CANopen over EtherCAT
Synchronous mode DC  synchronous  mode(SYNCO)
Asynchronous mode (Free Run)
Communication object SDO: aperiodic data object
PDO: periodic data object
EMCY: emergency object
Application layer specification CiA402 Drive Profile
Supported control modes Profile Position Mode(PP)
Profile Velocity Mode(PV)
Homing   Mode(HM)
Cycle Synchronized Position Mode(CSP)

Product specifications

Drive model Parameter OL3-E57H CL3-E57H OL3-E86H CL3-E86H
Matched motor 42/57/60 42/57/60 86 86
Supply voltage 24~48V DC 24~48V DC 24~80V AC 24~80V AC
Output current 5A 5A 8A 8A
Drive size 133*34*90 133*34*90 151*40*114 151*40*114
Drive weight








Lichuan Factory Production Products Machine


  • Carving Machine

  • Coating Equipment

  • Fiber laster Marking Machine

  • Screwing Machine

  • Testing Machine

  • UV Printer

  • Automatic Soldering Machine

  • Holding Torque Testing Machine

  • Screw Machine

  • Oscillograph Machine

Industry Applications


  • Robotic Arm

  • Laser Cutting Machine

  • 3D Printing

  • CNC Machine

  • Automatic Assertmbly

  • Engraving Machine
