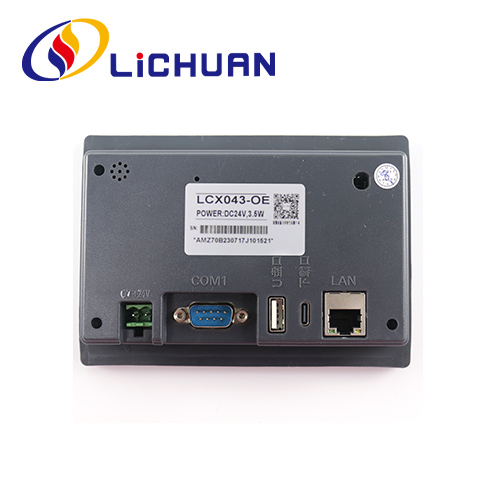

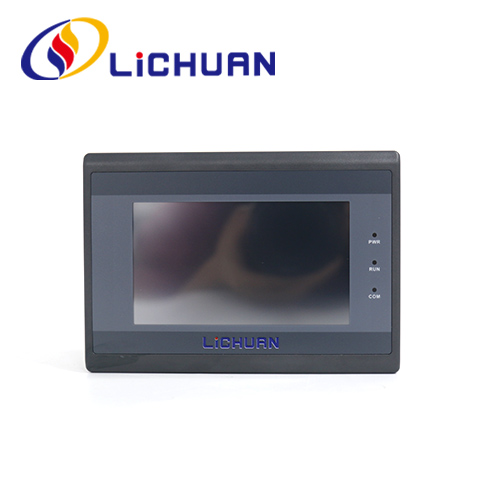

4.3 Inch HMI Ethernet Touch Screen with 2 Serial Port
LICHUAN® is a professional 4.3 Inch HMI Ethernet Touch Screen with 2 Serial Port manufacturers and suppliers in China, you can rest assured to wholesale and customized 4.3 Inch HMI Ethernet Touch Screen with 2 Serial Port from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 4.3 inch HMI Ethernet Touch Screen with 2 Serial Port from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices
Lichuan HMI widely use to industrial automatic equipment and cnc machines and dedicate to provide a easyuse easy-install human Machine Interfaces(HMI) to our customers. We have HMI with Ethernet and RS485/RS232/RS422 communication options and OEM logo is acceptable.we are support programming software for clients. Our HMI touch screen have 4.3inch. 7 inch ,10.1inch ,more details pls check HMI manual.
Product Models
| Module | Specifications |
| LCX043-M1 |
4.3 inch, DC19-30V, single serial port, 128Mbyte SPI Nand Flash, resistive touch; Ethernet is not supported, port 1: RS232/RS485/RS422; |
| LCX043-ME |
4.3 inch, DC19-30V, Two serial port, 128Mbyte SPI NandFlash, Resistive touch screen,Ethernet support; port 1: RS232/RS485/RS422;port 2: RS485; |
Products Size
| Show Dimensions | Product model | Overall dimensions | Effective display area size | Opening size | Recommended opening size |
| 4.3inch | LCX043 | 140*98*29mm | 95.04*53.86mm | 130*78mm | 132*80mm |
Products Parameters
| Product Specification | ||
| Hardware Performance | Module | LCX043 |
| operating system | LINUX | |
| Display Size | 4.3" TFT LCD | |
| Resolution（Px） | 480X272 | |
| Colors | 16.77M Colors | |
| Brightness | 300 cd/m2 | |
| Backlight | LED （Support backlight adjustment） | |
| LED life | 20000 hours | |
| Touch screen | 4-wire resistive touch screen（Surface hardness 4H） | |
| CPU | 64-bit ,1GHz Main frequency, with 64MB DDR memory | |
| Memory | 128Mbyte SPI Nand Flash | |
| RTC | Real-time clock built-in | |
| Buzzer | Built-in | |
| Ethernet | Support | |
| 4G Internet of Things | Customized, according to customer requirement | |
| Audio playback | Customized, according to customer requirement | |
| I2C External keyboard | Customized, according to customer requirement | |
| Save power failure data | Support | |
| USB port 1 | USB2.0 Device port (TYPE-C USB upgrade port) | |
| USB port 2 | USB2.0 HOST port (USB flash disk upgrade port) | |
| Program download method | USB,U disk, Ethernet(Only supported for Ethernet type) | |
| U disk | Support | |
| Communication port |
port 1: RS232, RS485, RS422 port 2: RS485 |
|
| Electrical Specifications | Maximum power consumption | 2W |
| Voltage range | DC 19-30V | |
| Power protection | Have +/-4KV lightning surge protection capability | |
| The allowed loss of power | <5ms | |
| CE&ROHS | Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards;Lightning surge+/-4KV,EFT:+/-4KV；Electrostatic contact discharge +/-5KV；Electrostatic air discharge+/-5KV. | |
| Environmental Specifications | Operating temperature | -10℃~50℃ |
| Storage temperature | -30℃~70℃ | |
| Environmental humidity | 10~90%RH(non-condensing) | |
| Vibration | 10-25Hz (X, Y, Z direction, 2g/30 min) | |
| Cooling way | Natural air cooling | |
| The Other Parameters | Protection grade | The front panel conforms to IP65 (with flat plate cabinet installation), and the rear panel conforms to IP20 |
| Overall dimensions | 140*98*29mm | |
| Effective display area size | 95.04*53.86mm | |
| Opening size | 130*78mm | |
| Recommended opening size | 132*80mm | |
| The weight | 207g | |
| Software | Upper：High_Performance_HMI | |
